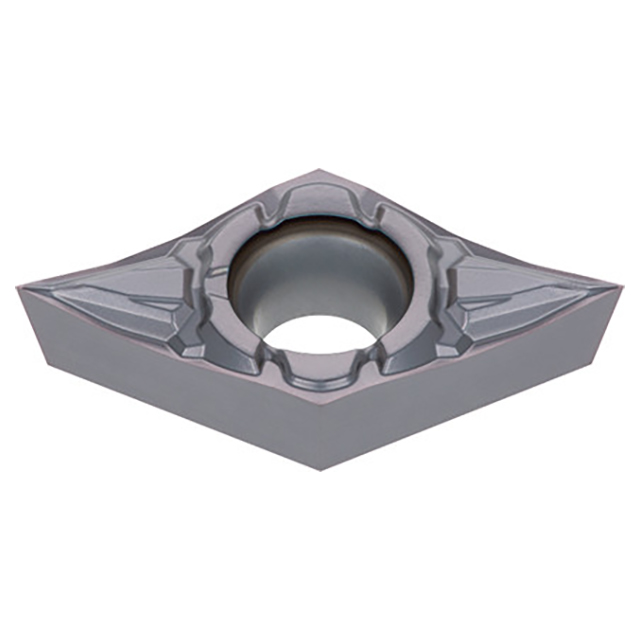

Tungaloy 6838673 | DCGT 32.5V FN-JP SH725 3/8" Circle Diameter x 0.156" Thickness x 0.001" Radius Carbide Indexable Turning Insert

$23.30 $16.31
(You save $6.99)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0010"
SKU:
23157063
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, G class, 55 degree rhombic insert for precision finishing.


Product Specifications
Manufacturer Part Number6838673
Corner Radius (Inch)0.001"
Cutting Edge Length (Inch)0.457"
Maximum Depth of Cut (Inch)0.0984"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0012"/rev
Minimum Depth of Cut (Inch)0.002"
Minimum Turning Feed (Inch)0.0008"/rev
Cutting Edge MaterialCarbide
GradeSH725
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hi Temp Alloys
Chip Breaker TypeJP
Major Clearance Angle7 Degree
Body MaterialCarbide
