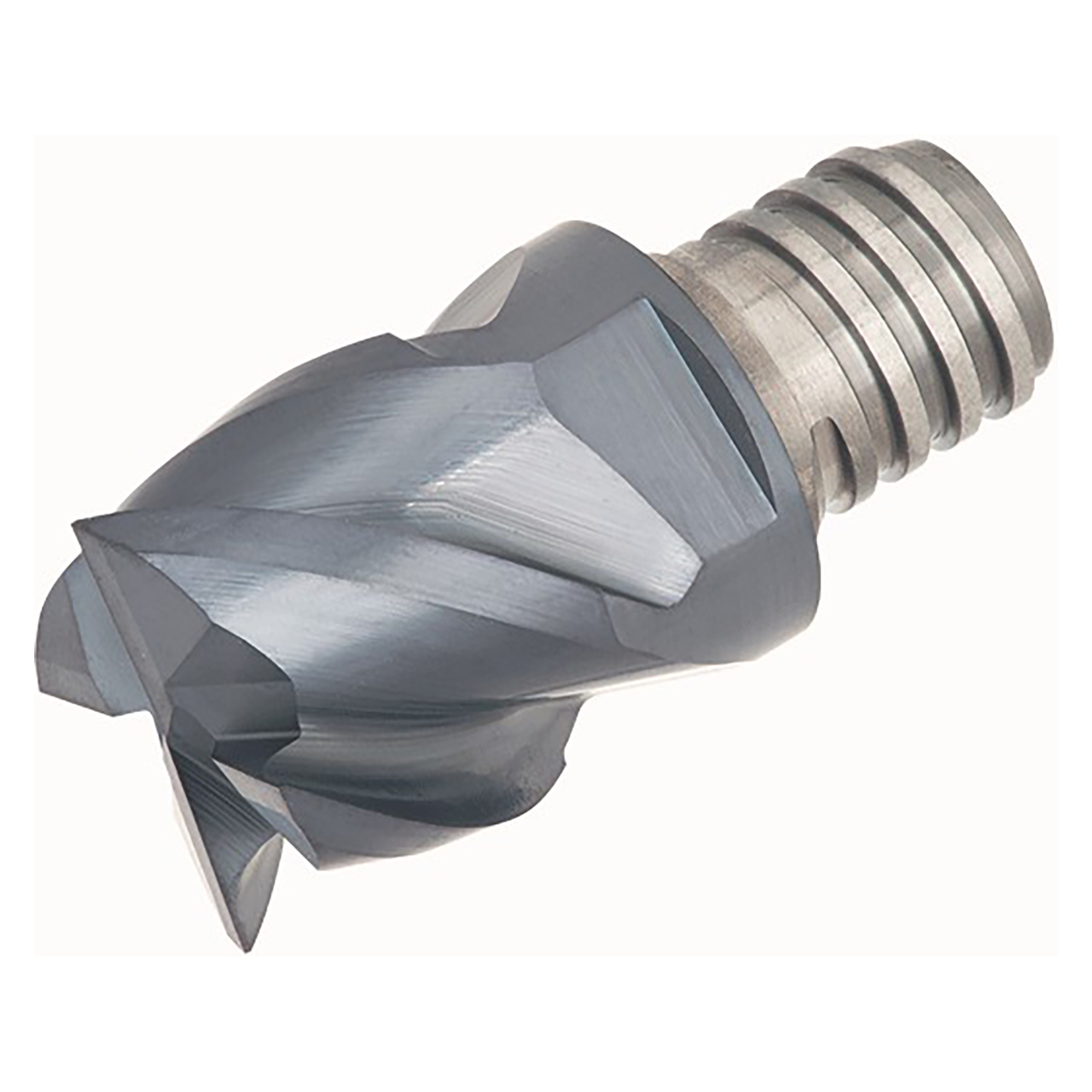

Square, 4 flutes, roughing-finishing, general.
Product Specifications
| Manufacturer Part Number | 6840475 |
| Cutting Diameter Maximum (mm) | 16mm |
| Cutting Diameter (mm) | 16mm |
| Depth of Cut Maximum (mm) | 12mm |
| Functional Length (mm) | 20.5mm |
| Corner Radius (mm) | 3mm |
| Maximum Feed per Tooth (fz) | 0.15mm/tooth |
| Grade | AH715 |
| Flute Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Tool Type | Solid Carbide Center Cutting Endmills 90 |
| Application | Shoulder Milling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (mm):
16.00mm
Corner Radius (mm):
3.00mm
Finish/Coating:
TiAlSiCrN
Body Material:
Carbide
Grade:
AH715
Maximum Depth of Cut (mm):
12.00mm
Number of Flutes:
4
interval quantity:
2
