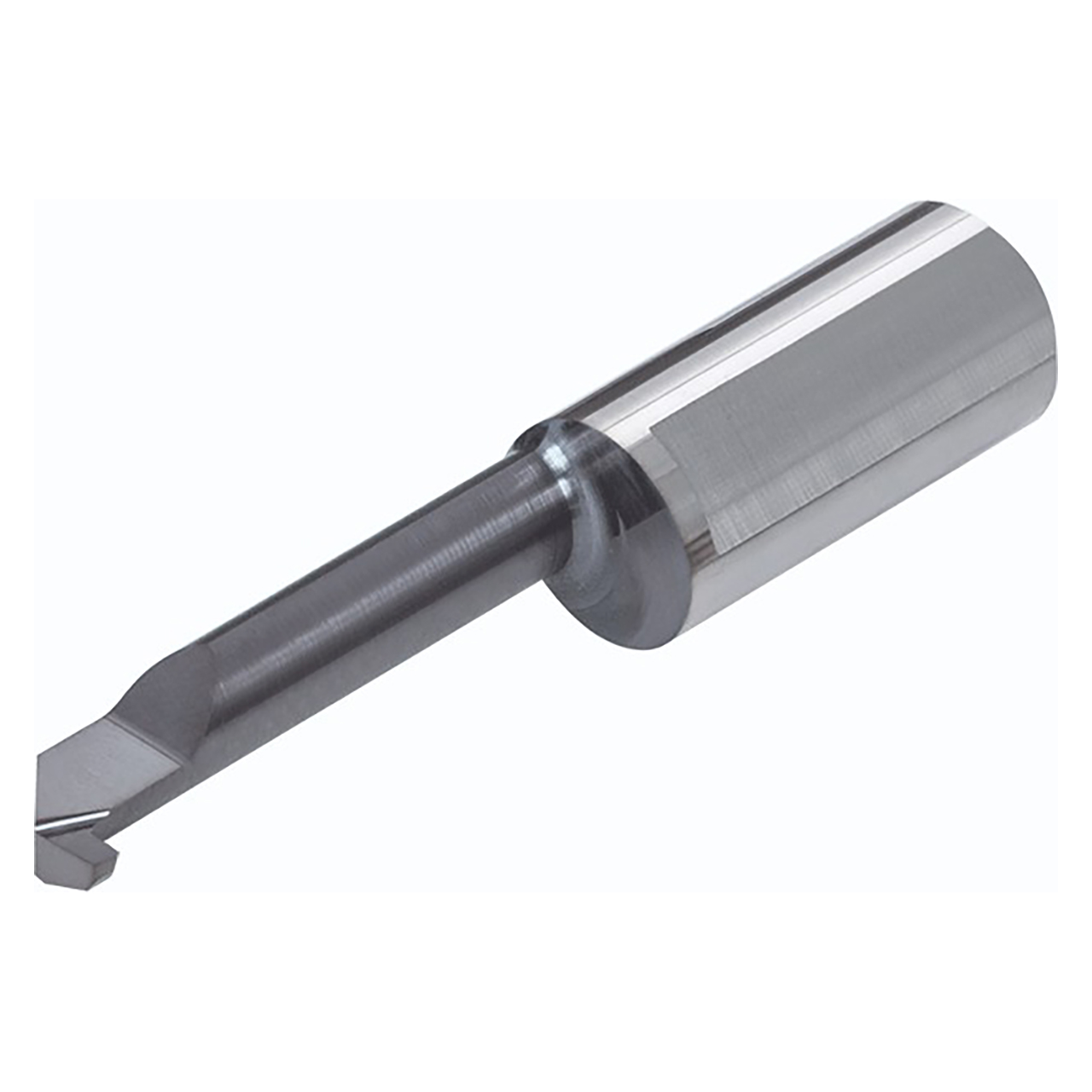

TinyMini turn solid boring bar for internal grooving.
Product Specifications
| Manufacturer Part Number | 6843067 |
| Connection Diameter Machine Side (Inch) | 0.276" |
| Functional Length (Inch) | 1.181" |
| Functional Width (Inch) | 0.106" |
| Front End Width (Inch) | 0.24" |
| Head Length (Inch) | 0.551" |
| Minimum Bore Diameter (Inch) | 0.268" |
| Cutting Direction (Hand) | Right Hand |
| Cutting Edge Material | Carbide |
| Tool Type | Solid, Turning & Grooving |
| Body Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Internal Grooving |
| Grade | SH725 |
