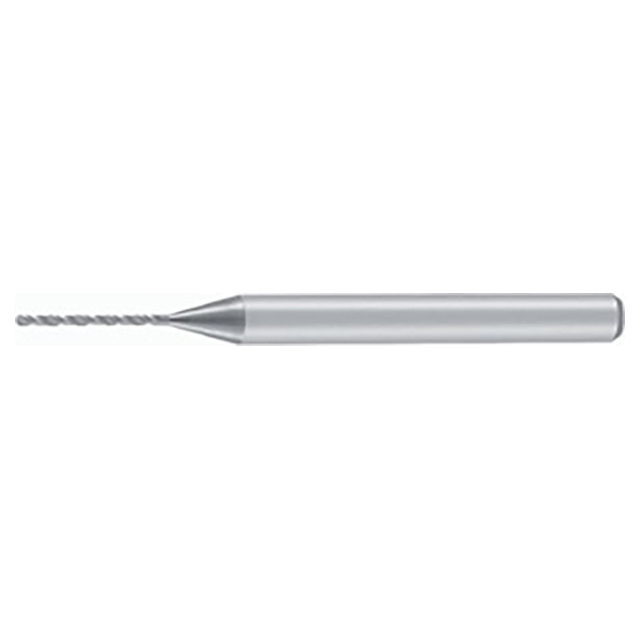

Small diameter, solid carbide drill, L/D (ULDR) =5-15.
Product Specifications
| # MFG | 6844778 |
| Drill Bit Size/Cutting Diameter (mm) | 1.25mm |
| Length Chip Flute (mm) | 9.7mm |
| Overall Length (mm) | 38mm |
| Point Length (mm) | 0.23mm |
| Shank Length (mm) | 24.4mm |
| Usable Length (mm) | 6.3mm |
| Connection Diameter Machine Side (mm) | 3mm |
| Point Angle (Degree) | 140 Degree |
| Shank Type | Round |
| Grade | YH170 |
| Body Material | Carbide |
| Coolant Supply Property | External |
| Cutting Edge Material | Carbide |
| Coating | TiAlN |
| Tool Type | Solid Carbide Drills |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Drill Bit Size (Inch):
3/64"
Drill Bit Size (Decimal Inch):
0.0500"
Drill Bit Size (mm):
1.25mm
Drill Point Angle:
140 Degree
Overall Length (Inch):
1-1/2"
Overall Length (Decimal Inch):
1.5000"
Overall Length (mm):
38.00mm
Finish/Coating:
TiAlN
interval quantity:
1
