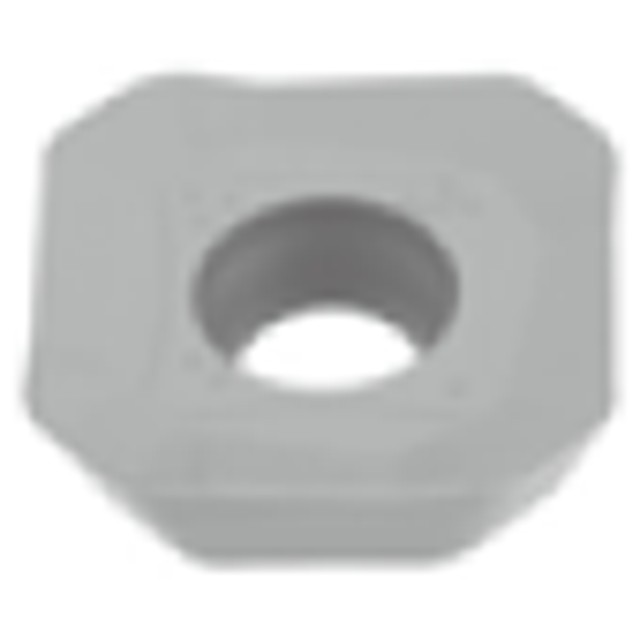

Tungaloy 6846541 | SWGT13T3AFPR-MJ AH120 0.547" Diameter x 0.157" Thickness x 0.059" Radius TiAlN Coated Carbide Milling Insert

$21.78 $18.08
(You save $3.70)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23024143
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

For finishing, precision machining with ground insert.


Product Specifications
Manufacturer Part Number6846541
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.157"
Inscribed Circle Diameter (Inch)0.547"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.547"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.079"
ApplicationFace Milling
CoatingTiAlN
Body MaterialCarbide
GradeAH120
Cutting Edge MaterialCarbide
Applicable MaterialSteel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys
