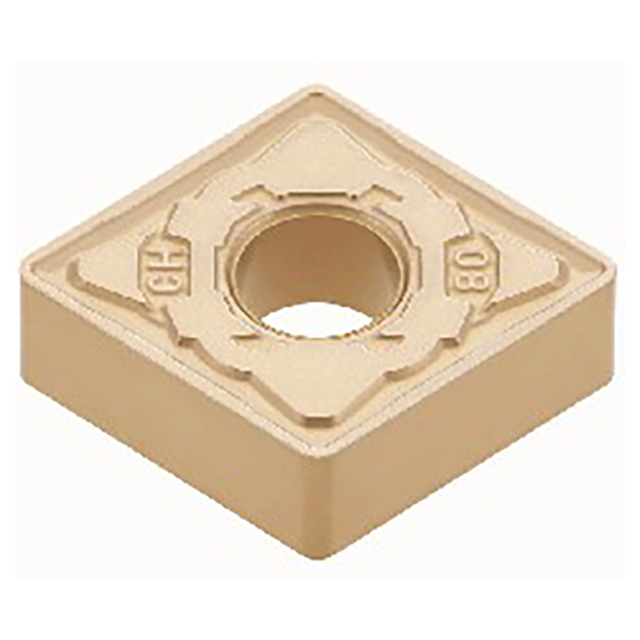

Negative relief angle, M class, 80 degree rhombic insert, for medium to heavy cutting of grey and ductile cast iron.
Product Specifications
| # MFG | 6850159 |
| Corner Radius (Inch) | 0.047" |
| Cutting Edge Length (Inch) | 0.634" |
| Maximum Depth of Cut (Inch) | 0.2362" |
| Fixing Hole Diameter (Inch) | 1/4" |
| Inscribed Circle Diameter (Inch) | 5/8" |
| Insert Thickness (Inch) | 1/4" |
| Maximum Turning Feed (Inch) | 0.0236"/rev |
| Minimum Depth of Cut (Inch) | 0.0787" |
| Minimum Turning Feed (Inch) | 0.0079"/rev |
| Coating | TiCN+Al2O3+TiN |
| Cutting Edge Material | Carbide |
| Grade | T5125 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Cast Iron |
| Chip Breaker Type | CH |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.87mm
Thickness (Inch):
1/4"
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
interval quantity:
10
