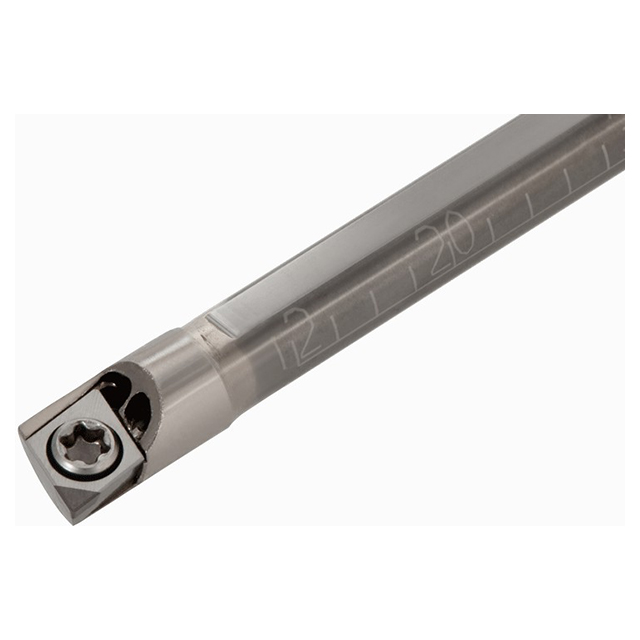

Screw-on boring bars, for position 75 degree rhombic insert with 11 degree clearance.
Product Specifications
| # MFG | 6850451 |
| Connection Diameter Machine Side (Inch) | 0.313" |
| Functional Length (Inch) | 5" |
| Functional Width (Inch) | 1/8" |
| Head Length (Inch) | 0.812" |
| Minimum Bore Diameter (Inch) | 1/4" |
| Shank Height (Inch) | 0.287" |
| Body Material | Steel |
| Application | For 75 Degree Rhombic Insert, For Miniature Machining |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | 0 Degree |
| Rake Angle Radial (Degree) | -12 Degree |
