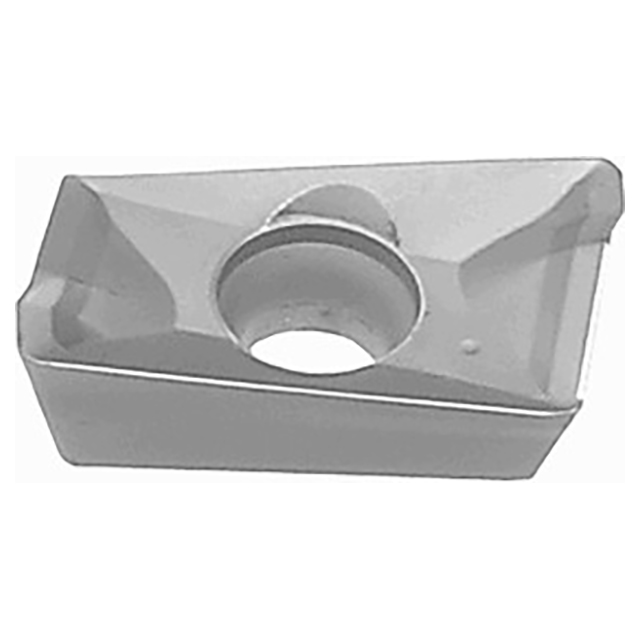

High performance insert with MJ chipbreaker for general purpose.
Product Specifications
| # MFG | 6853821 |
| Cutting Edge Effective Length (Inch) | 0.665" |
| Corner Radius (Inch) | 0.063" |
| Depth of Cut Maximum (Inch) | 0.63" |
| Insert Length (Inch) | 0.728" |
| Insert Thickness (Inch) | 0.22" |
| Insert Width (Inch) | 0.386" |
| Number of Cutting Edges | 2 |
| Application | Shoulder Milling |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
| Grade | T3130 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T3130
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
25/64"
Width (Decimal Inch):
0.3860"
Width (mm):
9.80mm
Length (Inch):
47/64"
Length (Decimal Inch):
0.7280"
Length (mm):
18.49mm
Thickness (Inch):
7/32"
Thickness (Decimal Inch):
0.2200"
Thickness (mm):
5.59mm
interval quantity:
10
