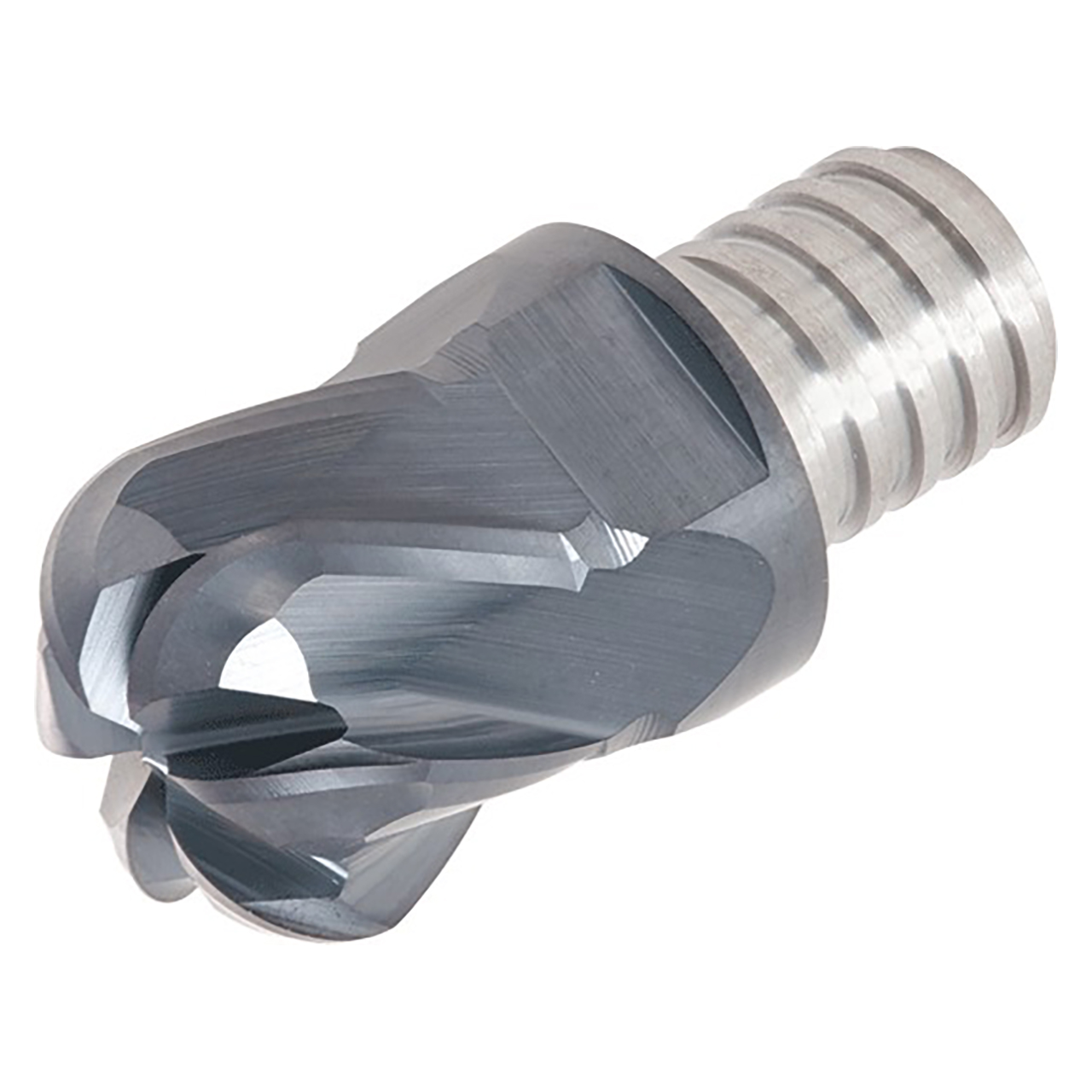

Radius, 6 flutes, semi finishing-finishing, helix cutting edge.
Product Specifications
| Manufacturer Part Number | 6859338 |
| Cutting Diameter Maximum (mm) | 12mm |
| Cutting Diameter (mm) | 12mm |
| Depth of Cut Maximum (mm) | 7mm |
| Functional Length (mm) | 16.5mm |
| Corner Radius (mm) | 4mm |
| Maximum Feed per Tooth (fz) | 0.13mm/tooth |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 6 |
| Tool Cutting Edge Angle (Degree) | 97 Degree |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Corner Rounding Endmills |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Profile Milling |
