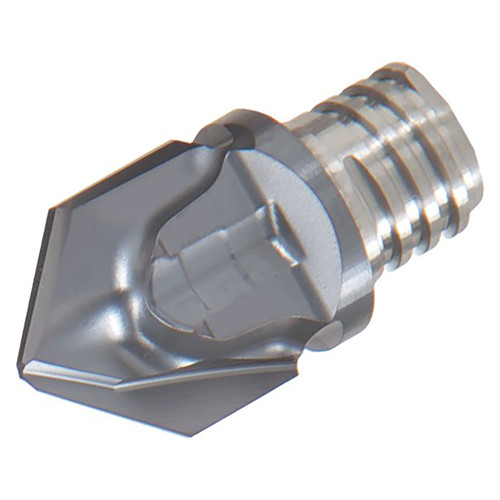

Chamfering, 2 flutes, radius chamfering.
Product Specifications
| Manufacturer Part Number | 6859355 |
| Cutting Diameter Maximum (mm) | 10mm |
| Cutting Diameter (mm) | 5.1mm |
| Depth of Cut Maximum (mm) | 9.5mm |
| Functional Length (mm) | 12.5mm |
| Corner Radius (mm) | 2.5mm |
| Grade | AH725 |
| Flute Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 2 |
| Body Material | Carbide |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid Chamfering Endmills |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Application | Multi Functional Tools |
