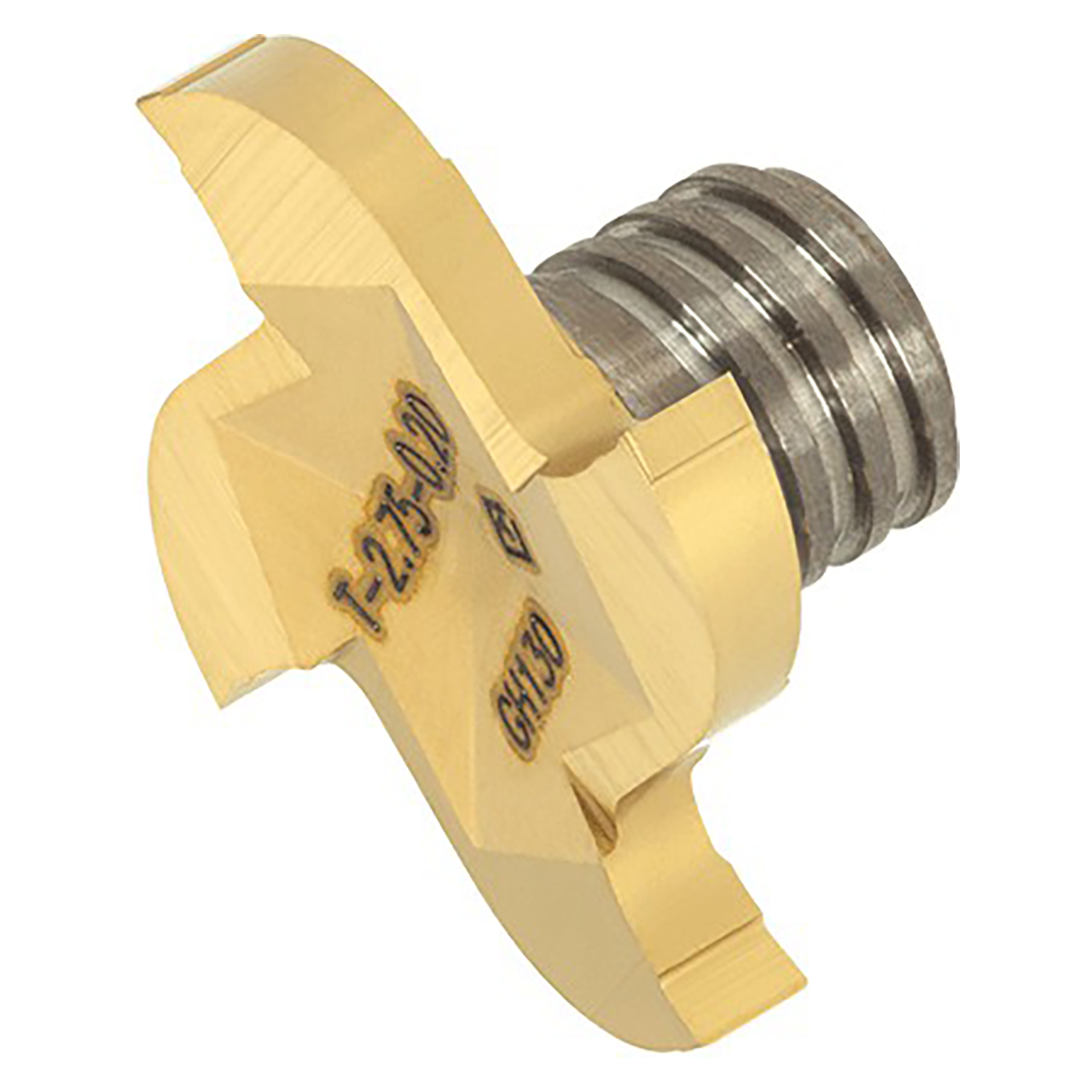

Slotting, 4, 6 flutes, for slotting.
Product Specifications
| Manufacturer Part Number | 6859485 |
| Cutting Diameter Maximum (mm) | 21.7mm |
| Cutting Diameter (mm) | 21.7mm |
| Depth of Cut Maximum (mm) | 0.96mm |
| Functional Length (mm) | 1.56mm |
| Corner Radius (mm) | 0mm |
| Grade | GH130 |
| Flute Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 4 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Body Material | Carbide |
| Coating | TiCN |
| Cutting Edge Material | Carbide |
| Tool Type | Solid "T" Slot Cutters |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Application | Slot Milling |
