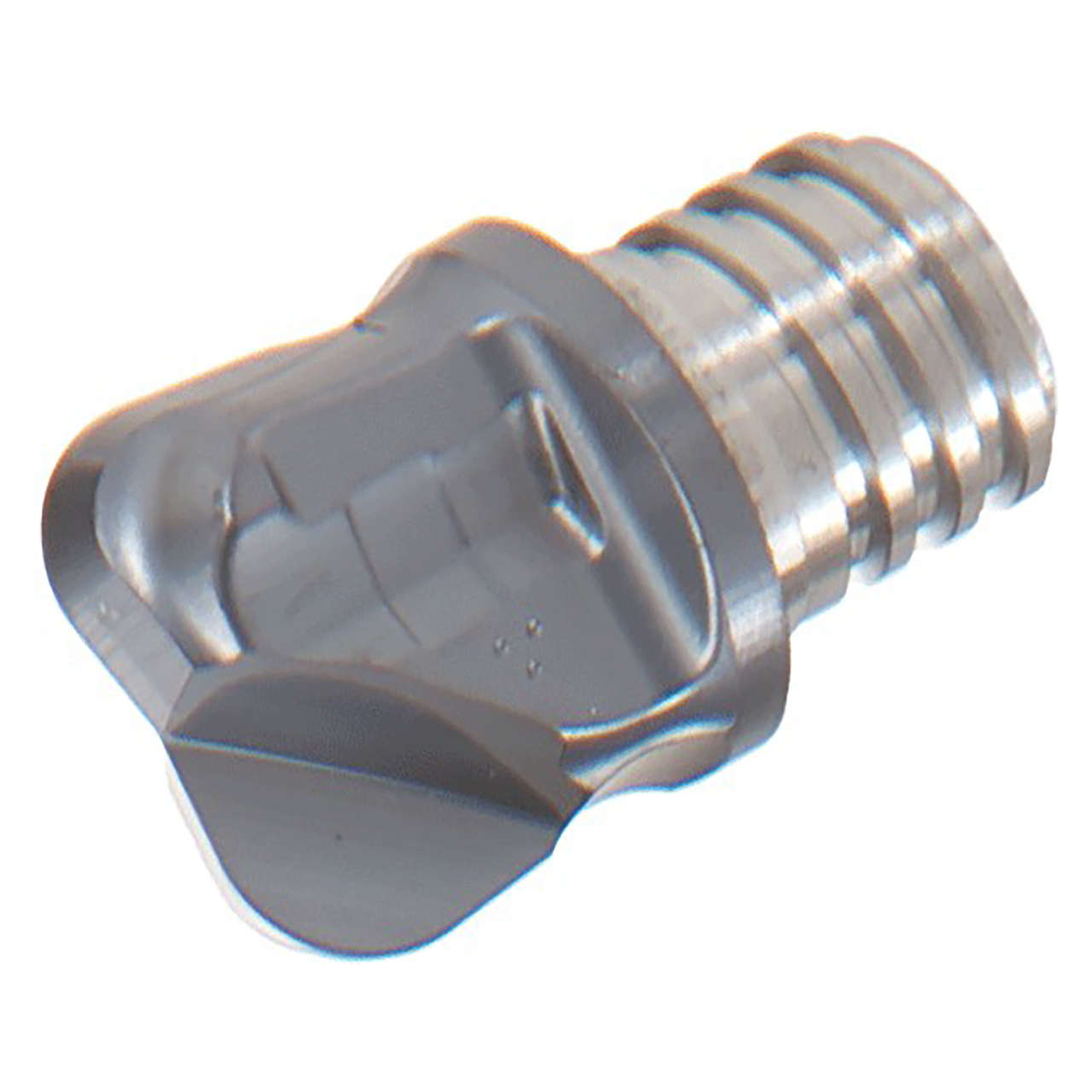

Name: Tungaloy 6859508 | VRB120L06.2R20-02S08 AH725 12.00mm Diameter x 11.10mm Functional Length x 6.20mm Depth of Cut x 2.00mm Radius TiAlN Coated Carbide Radius Head Replaceable Milling Tip
Brand: Tungaloy
SKU: 23137712
Availability: InStock

Tungaloy 6859508 | VRB120L06.2R20-02S08 AH725 12.00mm Diameter x 11.10mm Functional Length x 6.20mm Depth of Cut x 2.00mm Radius TiAlN Coated Carbide Radius Head Replaceable Milling Tip

$82.10 $68.14

(You save $13.96)

interval quantity:

SKU:

23137712

UPC:

Weight:

1.23 LBS

Minimum Purchase:

2 units

Shipping:

Free Shipping

Features
Reviews
Other Details

Radius, 2 flutes, roughing-semi finishing, economical.

Product Specifications

Manufacturer Part Number	6859508
Cutting Diameter Maximum (mm)	12mm
Cutting Diameter (mm)	12mm
Depth of Cut Maximum (mm)	6.2mm
Functional Length (mm)	11.1mm
Corner Radius (mm)	2mm
Maximum Feed per Tooth (fz)	0.13mm/tooth
Grade	AH725
Number of Flutes	2
Tool Cutting Edge Angle (Degree)	97 Degree
Body Material	Carbide
Coating	TiAlN
Cutting Edge Material	Carbide
Tool Type	Solid Corner Rounding Endmills
Applicable Material	Steel, Stainless Steel, Cast Iron, Hi Temp Alloys
Application	Profile Milling

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
