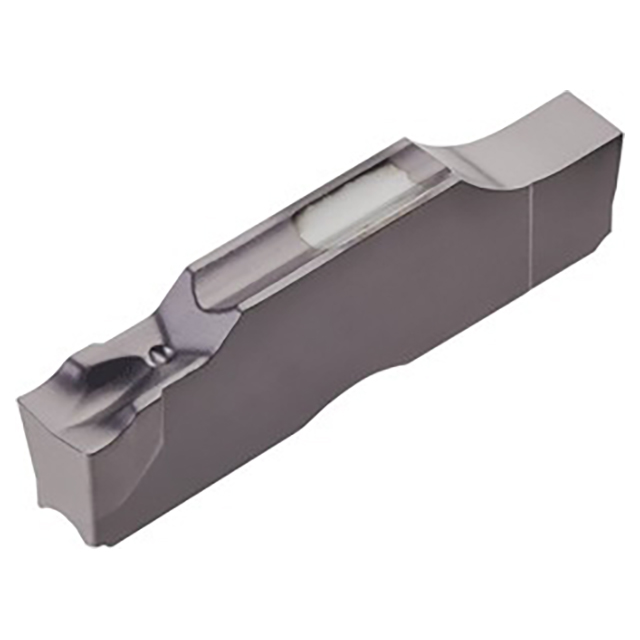

Single-ended inserts with low cutting force chipbreaker, for external grooving & parting, tolerance of insert width +-0.002".
Product Specifications
# MFG | 6860760 |
Cutting Width (Inch) | 0.079" |
Insert Length (Inch) | 0.787" |
Corner Radius (Inch) | 0.0079" |
Major Left Hand Cutting Edge Angle (Degree) | 6 Degree |
Grade | GH130 |
Tool Type | Face Turn-Groove Inserts |
Cutting Edge Material | Carbide |
Coating | TiCN |
Applicable Material | Steel, Stainless Steel, Cast Iron |
Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Cutting Width (Inch):
5/64"
Cutting Width (Decimal Inch):
0.0790"
Cutting Width (mm):
2.01mm
Material Grade:
GH130
Finish/Coating:
TiCN
interval quantity:
10
