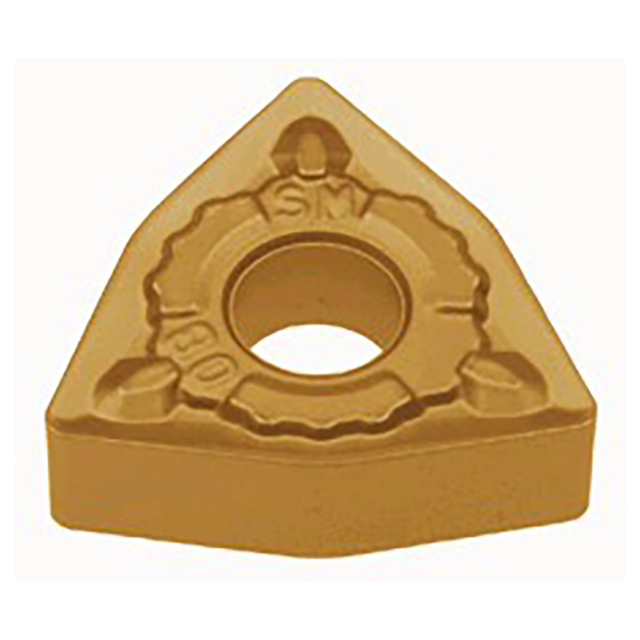

Negative relief angle, M class, trigon insert, for medium cutting of stainless steel.
Product Specifications
| # MFG | 6861209 |
| Corner Radius (Inch) | 0.031" |
| Cutting Edge Length (Inch) | 0.343" |
| Maximum Depth of Cut (Inch) | 0.1575" |
| Fixing Hole Diameter (Inch) | 0.203" |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Insert Thickness (Inch) | 0.187" |
| Maximum Turning Feed (Inch) | 0.0196"/rev |
| Minimum Depth of Cut (Inch) | 0.0196" |
| Minimum Turning Feed (Inch) | 0.0079"/rev |
| Coating | TiAlN |
| Cutting Edge Material | Carbide |
| Grade | AH725 |
| Tool Type | Turn Negative Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hi Temp Alloys |
| Chip Breaker Type | SM |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.70mm
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.75mm
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
interval quantity:
10
