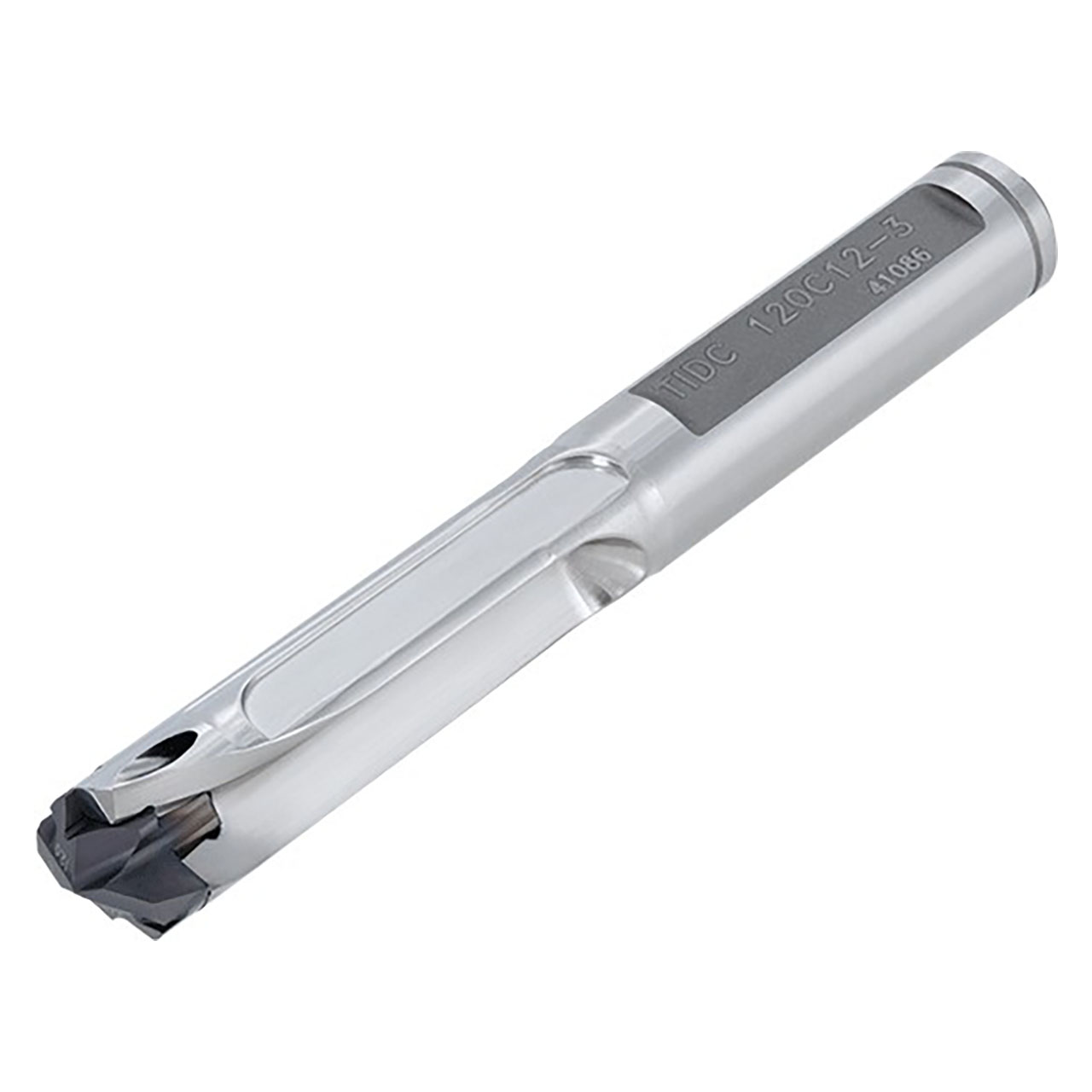

"DrillMeister" indexable head drill with flanged shank.
Product Specifications
| Cutting Diameter Maximum (Inch) | 0.4488" |
| Cutting Diameter Minimum (Inch) | 0.4331" |
| Connection Diameter Machine Side (mm) | 16 mm |
| Overall Length (Inch) | 3.524" |
| Point Length (mm) | 2.12 mm |
| Shank Length (mm) | 48 mm |
| Usable Length (mm) | 115 mm |
| Insert Seat Size Code (SSC) | 14 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.4488"
Minimum Cutting Diameter (Decimal Inch):
0.4331"
Body Material:
Steel
Overall Length (Decimal Inch):
3.5240"
Point Length (Decimal Inch):
0.0660"
Shank Length (Decimal Inch):
1.6140"
Usable Length (Decimal Inch):
1.3780"
interval quantity:
1
