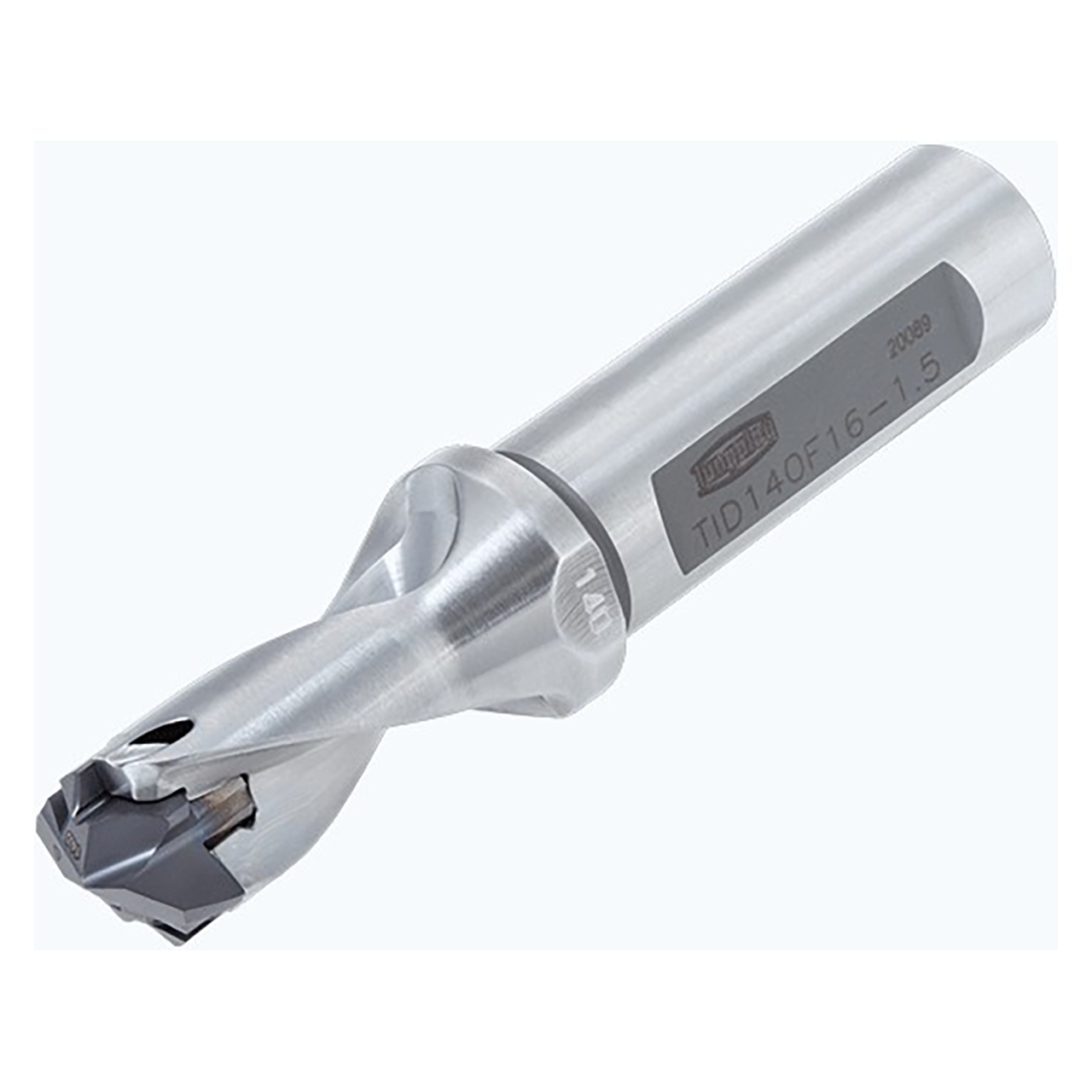

"DrillMeister" TIDC L/D=3 indexable head drills.
Product Specifications
| Cutting Diameter Maximum (mm) | 15.9 mm |
| Cutting Diameter Minimum (mm.) | 15 mm |
| Flange Diameter (mm) | 25 mm |
| Connection Diameter Machine Side (Inch) | 0.315" |
| Overall Length (mm) | 96.03mm |
| Point Length (Inch) | 0.044" |
| Shank Length (Inch)) | 1.417" |
| Shank Length (mm) | 0.906" |
| Insert Seat Size Code (SSC) | 7 |
| Coolant Supply Property (CSP) | Through Hole |
| Application | General Drilling |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Maximum Cutting Diameter (Decimal Inch):
0.6260"
Minimum Cutting Diameter (Decimal Inch):
0.5905"
Flange Diameter (Decimal Inch):
0.9840"
Body Material:
Steel
Overall Length (Decimal Inch):
3.7810"
Point Length (Decimal Inch):
0.0890"
Shank Length (Decimal Inch):
1.9690"
Usable Length (Decimal Inch):
1.0240"
