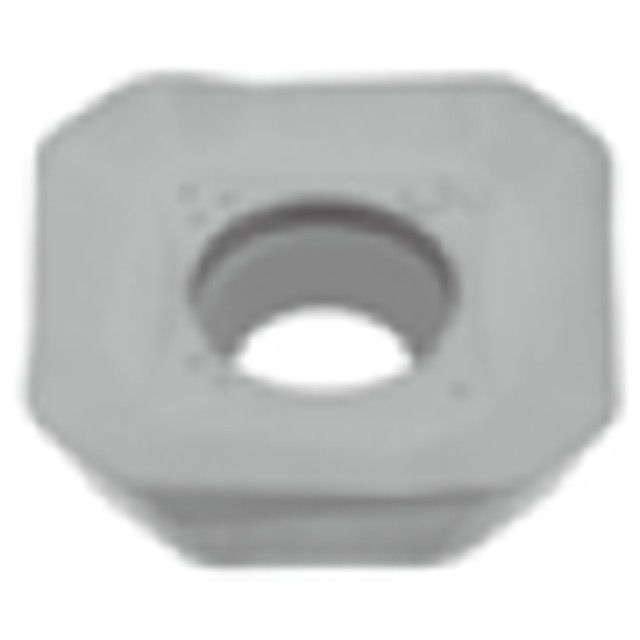

Tungaloy 6863804 | SWMT13T3AFPR-MJ T1115 0.547" Diameter x 0.157" Thickness x 0.059" Radius TiCN+Al2O3+TiN Coated Carbide Milling Insert

$15.68 $13.01
(You save $2.67)
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1115
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
SKU:
23011177
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

For general purpose. Sharp edge provides low cutting force.


Product Specifications
Manufacturer Part Number6863804
Corner Radius (Inch)0.059"
Depth of Cut Maximum (Inch)0.157"
Inscribed Circle Diameter (Inch)0.547"
Insert Thickness (Inch)0.157"
Insert Width (Inch)0.547"
Maximum Feed per Tooth0.0098"/tooth
Minimum Feed per Tooth0.002"/tooth
Number of Cutting Edges4
Wiper Edge Length0.079"
ApplicationFace Milling
CoatingTiCN+Al2O3+TiN
Body MaterialCarbide
GradeT1115
Cutting Edge MaterialCarbide
Applicable MaterialSteel

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
T1115
Finish/Coating:
TiCN+Al2O3+TiN
Width (Inch):
35/64"
Width (Decimal Inch):
0.5470"
Width (mm):
13.89mm
Inscribed Circle (Inch):
35/64"
Inscribed Circle (Decimal Inch):
0.5470"
Inscribed Circle (mm):
13.89mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1570"
Thickness (mm):
3.99mm
