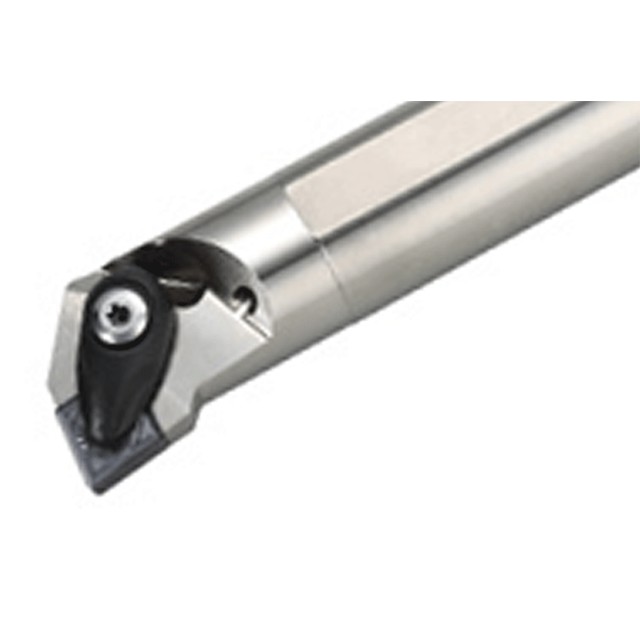

Double-clamp boring bar, for negative 80 degree rhombic insert.
Product Specifications
| Manufacturer Part Number | 6864799 |
| Connection Diameter Machine Side (Inch) | 1-1/2" |
| Functional Length (Inch) | 14" |
| Functional Width (Inch) | 0.89" |
| Head Length (Inch) | 2.16" |
| Minimum Bore Diameter (Inch) | 2" |
| Shank Height (Inch) | 1.45" |
| Body Material | Steel |
| Application | For 80 Degree Rhombic Insert |
| Tool Type | Internal Indexable-Turn Tool |
| Rake Angle Axial (Degree) | -6 Degree |
| Rake Angle Radial (Degree) | -8 Degree |
