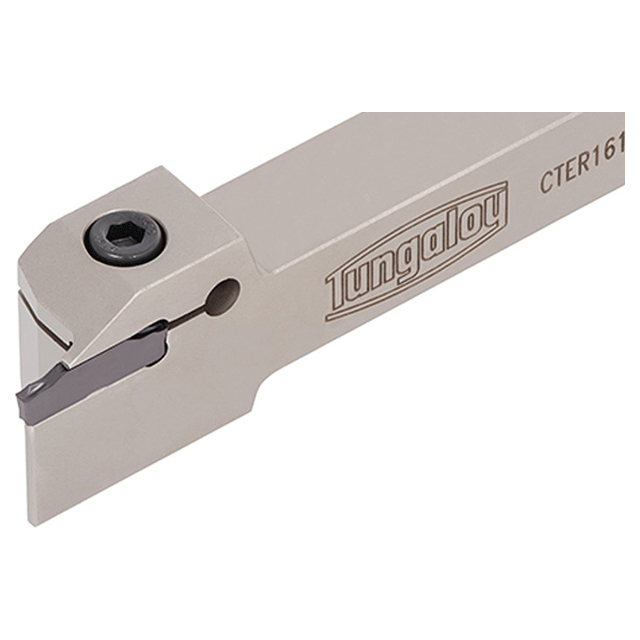

External toolholders for grooving, parting & turning.
Product Specifications
| Manufacturer Part Number | 6880632 |
| Cutting Width Maximum (Inch) | 0.098" |
| Cutting Width Minimum (Inch) | 0.059" |
| Functional Length (Inch) | 5.000" |
| Functional Width (Inch) | 0.754" |
| Head Length (Inch) | 1.457" |
| Shank Height (Inch) | 3/4" |
| Shank Width (Inch) | 3/4" |
| Cutting Direction | Left Hand |
| Tool Type | Turn-Groove Tools |
| Application | External Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Groove Width (Inch):
1/16"
Minimum Groove Width (Decimal Inch):
0.0590"
Minimum Groove Width (mm):
1.50mm
Maximum Groove Width (Inch):
3/32"
Maximum Groove Width (Decimal Inch):
0.0980"
Maximum Groove Width (mm):
2.49mm
Toolholder Type:
External Grooving
Shank Height (Inch):
3/4"
Shank Height (Decimal Inch):
0.7500"
Shank Height (mm):
19.05mm
