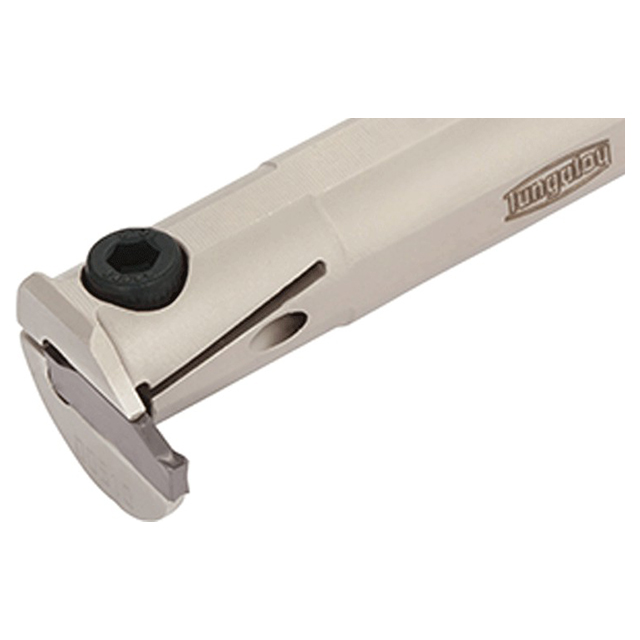

Boring bars for Internal grooving & turning.
Product Specifications
| Manufacturer Part Number | 6880689 |
| Connection Diameter Machine Side (Inch) | 3/4" |
| Cutting Width Maximum (Inch) | 0.137" |
| Cutting Width Minimum (Inch) | 0.098" |
| Functional Length (Inch) | 6-1/2" |
| Functional Width (Inch) | 0.609" |
| Head Length (Inch) | 1.575" |
| Minimum Bore Diameter (Inch) | 1.000" |
| Shank Height (Inch) | 0.661" |
| Cutting Direction | Right Hand |
| Tool Type | Indexable Turn & Groove Tools |
| Application | Internal Grooving |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Minimum Bore Diameter (Inch):
1"
Minimum Bore Diameter (Decimal Inch):
1.0000"
Minimum Bore Diameter (mm):
25.40mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
