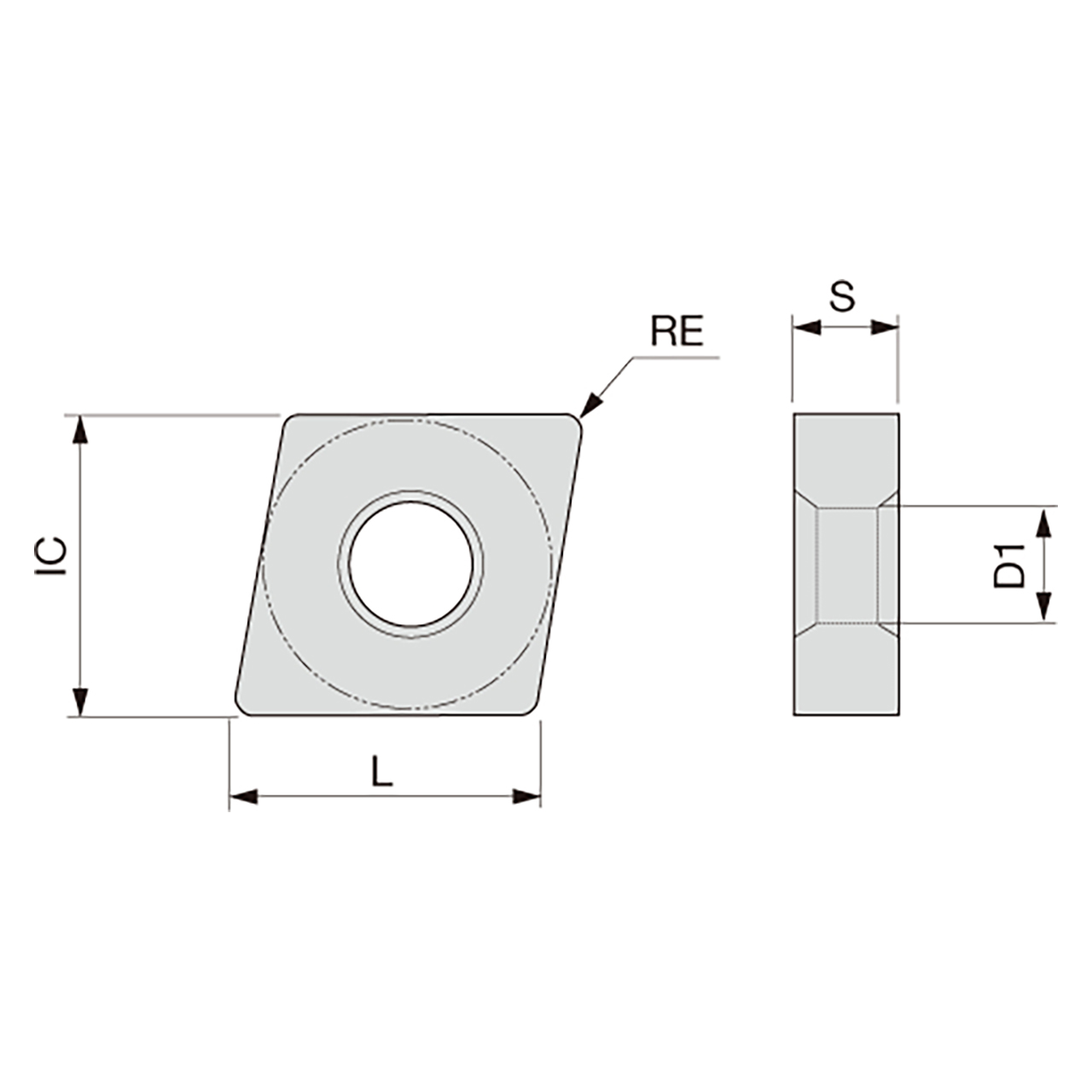

Tungaloy 6966060 | CNMG 430.5 PS T6215 1/2" Circle Diameter x 0.187" Thickness x 0.508" Edge Length x 0.008" Radius TiCN+Al2O3+TiN Coated Carbide Turning Insert

$18.70 $12.16
(You save $6.54)
Brand:
Tungaloy
Corner Radius (Decimal Inch):
0.0079"
interval quantity:
10
SKU:
23343519
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout
Tungaloy 6966060 | CNMG 430.5 PS T6215 1/2" Circle Diameter x 0.187" Thickness x 0.508" Edge Length x 0.008" Radius TiCN+Al2O3+TiN Coated Carbide Turning Insert

Product Specifications
Manufacturer Part Number6966060
Corner Radius (Decimal Inch)0.008"
Cutting Edge Length (Decimal Inch)0.508"
Maximum Depth of Cut (Decimal Inch)0.059"
Minimum Depth of Cut (Decimal Inch)0.012"
Inscribed Circle Diameter (Inch)1/2"
Insert Thickness (Decimal Inch)0.187"
Chip Breaker TypeNega-PS
Fixing Hole Diameter (Deciaml Inch)0.203"
Cutting DirectionNeutral
GradeT6215
Applicable MaterialSteel, Stainless Steel
Cutting Edge MaterialCarbide
Body MaterialCarbide
CoatingTiCN+Al2O3+TiN
Product TypeTurning Insert
