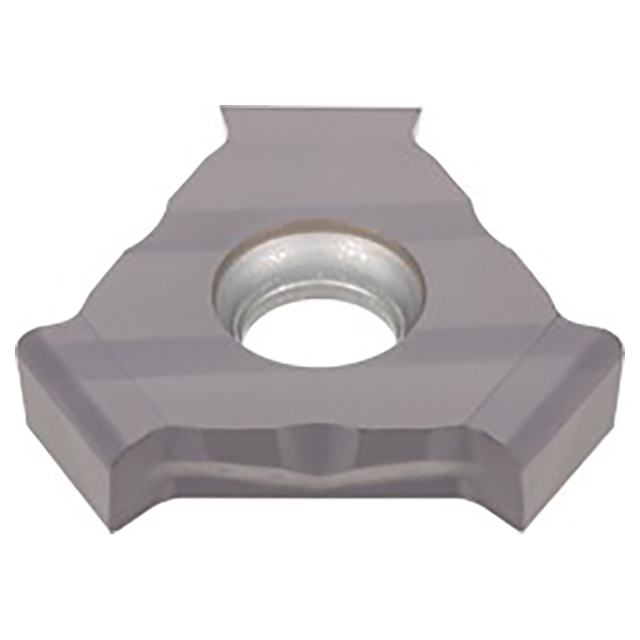

Tangentially mounted inserts for slot milling cutters.
Product Specifications
| # MFG | 6989766 |
| Corner Radius (Inch) | 0.0315" |
| Inscribed Circle Diameter (Inch) | 0.665" |
| Insert Thickness (Inch) | 0.177" |
| Insert Width (Inch) | 0.177" |
| Number of Cutting Edges | 6 |
| Application | Slot Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
11/64"
Width (Decimal Inch):
0.1770"
Width (mm):
4.50mm
Inscribed Circle (Inch):
43/64"
Inscribed Circle (Decimal Inch):
0.6650"
Inscribed Circle (mm):
16.89mm
Thickness (Inch):
11/64"
Thickness (Decimal Inch):
0.1770"
Thickness (mm):
4.50mm
interval quantity:
10
