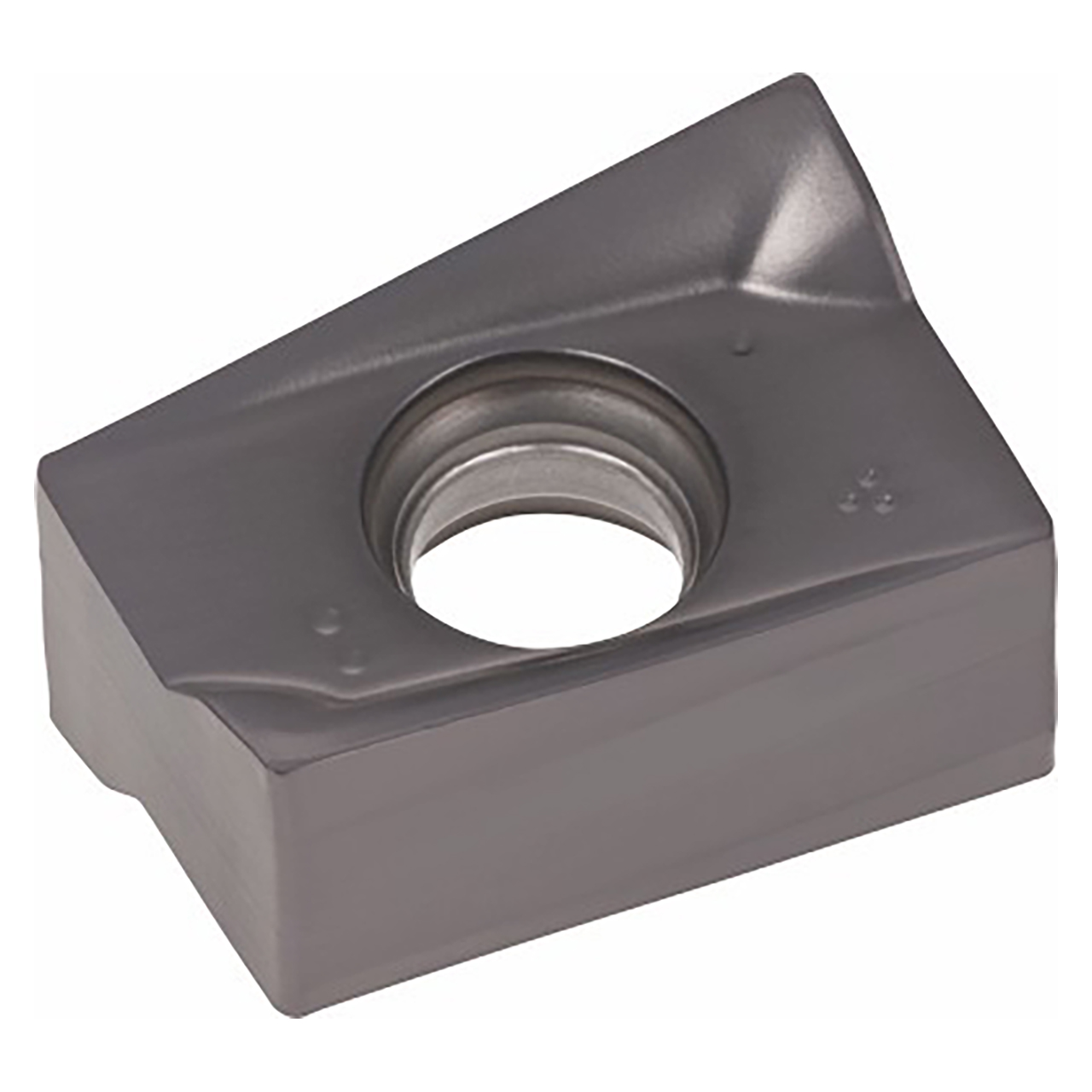

Double sided insert with chipbreaker and sharp cutting edges.
Product Specifications
| # MFG | 6990560 |
| Cutting Edge Effective Length (Inch) | 0.433" |
| Corner Radius (Inch) | 0.0787" |
| Depth of Cut Maximum (Inch) | 0.354" |
| Inscribed Circle Diameter (Inch) | 0.354" |
| Insert Thickness (Inch) | 0.327" |
| Insert Width (Inch) | 0.354" |
| Maximum Feed per Tooth | 0.0079"/tooth |
| Minimum Feed per Tooth | 0.004"/tooth |
| Number of Cutting Edges | 4 |
| Application | Shoulder Milling |
| Coating | TiAlN |
| Body Material | Carbide |
| Grade | AH120 |
| Cutting Edge Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron, Hard Materials, Hi Temp Alloys |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Manufacturer's Grade:
AH120
Finish/Coating:
TiAlN
Width (Inch):
23/64"
Width (Decimal Inch):
0.3540"
Width (mm):
8.99mm
Inscribed Circle (Inch):
23/64"
Inscribed Circle (Decimal Inch):
0.3540"
Inscribed Circle (mm):
8.99mm
Thickness (Inch):
21/64"
Thickness (Decimal Inch):
0.3270"
Thickness (mm):
8.31mm
interval quantity:
10
