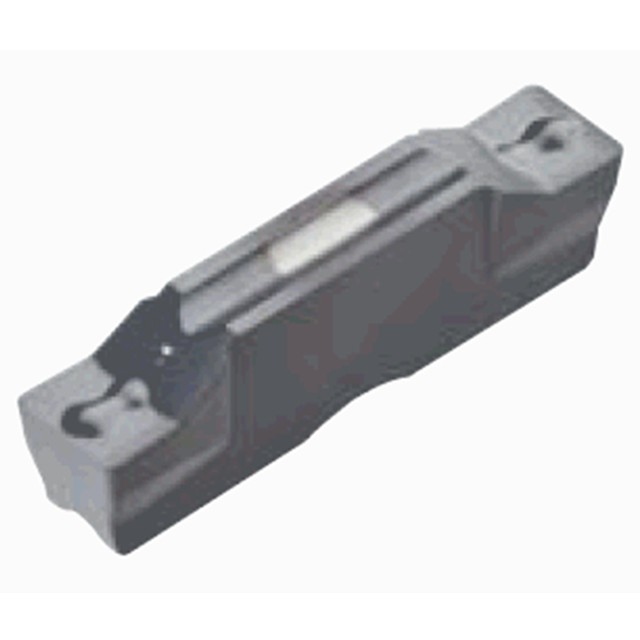

Double-ended inserts, 1st choice for internal grooving & turning, tolerance of insert width +-0.0008" (only DTI3-040 & DTI4-040 +-0.002").
Product Specifications
| Manufacturer Part Number | 6993936 |
| Cutting Width (Inch) | 0.197" |
| Corner Radius (Inch) | 0.0314" |
| Maximum Depth of Cut (Inch) | 0.925" |
| Cutting Direction | Neutral |
| Number of Cutting Edges | 2 |
| Cutting Edge Material | Cermet |
| Tool Type | Groove-Turn Precision Inserts |
| Grade | NS9530 |
| Body Material | Carbide |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Application | Inserts |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Corner Radius (Decimal Inch):
0.0314"
Finish/Coating:
Uncoated
Body Material:
Carbide
Grade:
NS9530
Cutting Depth (Decimal Inch):
0.9250"
Cutting Direction:
Neutral
Cutting Width (Decimal Inch):
0.1970"
interval quantity:
10
