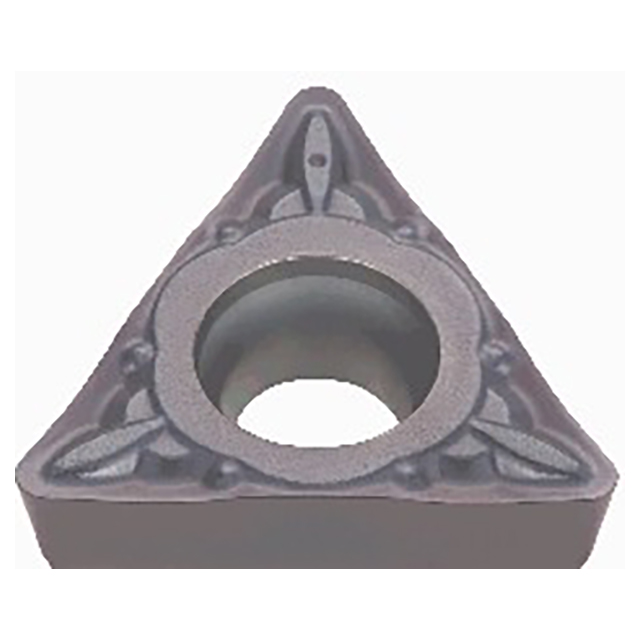

Tungaloy 6994595 | TPMT 222 PSS AH630 1/4" Circle Diameter x 1/8" Thickness x 0.031" Radius TiAlN Coated Carbide Indexable Turning Insert

$10.45 $7.32
(You save $3.13)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
1/8"
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
interval quantity:
10
SKU:
23025839
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, M class, triangular insert, for finishing to medium cutting.


Product Specifications
# MFG6994595
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.433"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.134"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0118"
Minimum Turning Feed (Inch)0.0039"/rev
CoatingTiAlN
Cutting Edge MaterialCarbide
GradeAH630
Tool TypeTurn Positive Inserts
Applicable MaterialStainless Steel
Chip Breaker TypePSS
Major Clearance Angle11 Degree
Body MaterialCarbide
