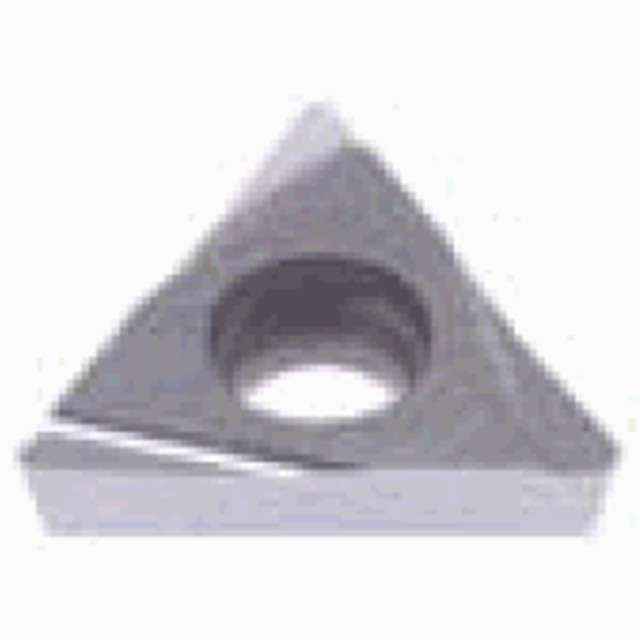

Tungaloy 6997887 | TPGT 32.50.5 L-W15 GT9530 3/8" Circle Diameter x 0.156" Thickness x 0.008" Radius TiCNO Coated Cermet Indexable Turning Insert

$33.30 $23.31
(You save $9.99)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Decimal Inch):
0.0080"
SKU:
23139443
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, G class, triangular insert, lead type chipbreaker for finishing.


Product Specifications
Manufacturer Part Number6997887
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.65"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0079"
Minimum Turning Feed (Inch)0.0012"/rev
CoatingTiCNO
Cutting Edge MaterialCermet
GradeGT9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypeW15
Major Clearance Angle11 Degree
Body MaterialCarbide
