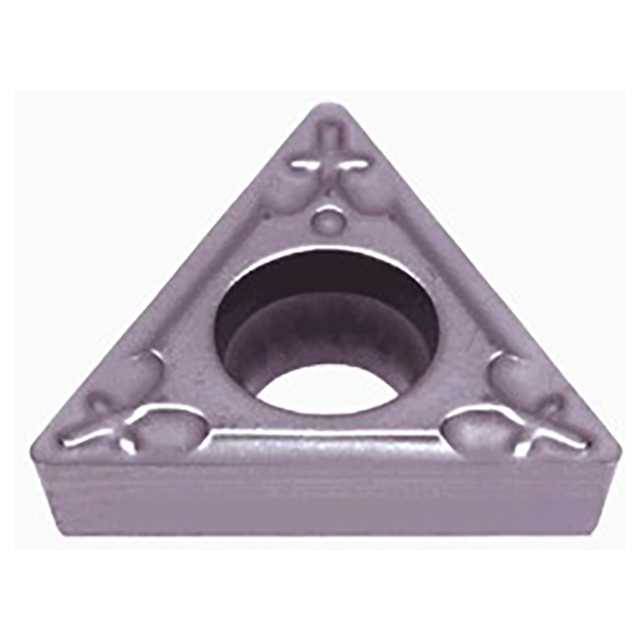

Tungaloy 6997961 | TPGT 2.520.5-01 NS9530 0.313" Circle Diameter x 1/8" Thickness x 0.008" Radius Cermet Indexable Turning Insert

$28.30 $18.40
(You save $9.90)
Brand:
Tungaloy
Corner Radius (Decimal Inch):
0.0078"
interval quantity:
10
SKU:
23139499
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 11 degree relief angle, G class, triangular insert, for precision finishing.


Product Specifications
# MFG6997961
Corner Radius (Inch)0.008"
Cutting Edge Length (Inch)0.543"
Maximum Depth of Cut (Inch)0.0197"
Fixing Hole Diameter (Inch)0.134"
Inscribed Circle Diameter (Inch)0.313"
Insert Thickness (Inch)1/8"
Maximum Turning Feed (Inch)0.0059"/rev
Minimum Depth of Cut (Inch)0.0008"
Minimum Turning Feed (Inch)0.002"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type1
Major Clearance Angle11 Degree
Body MaterialCarbide
