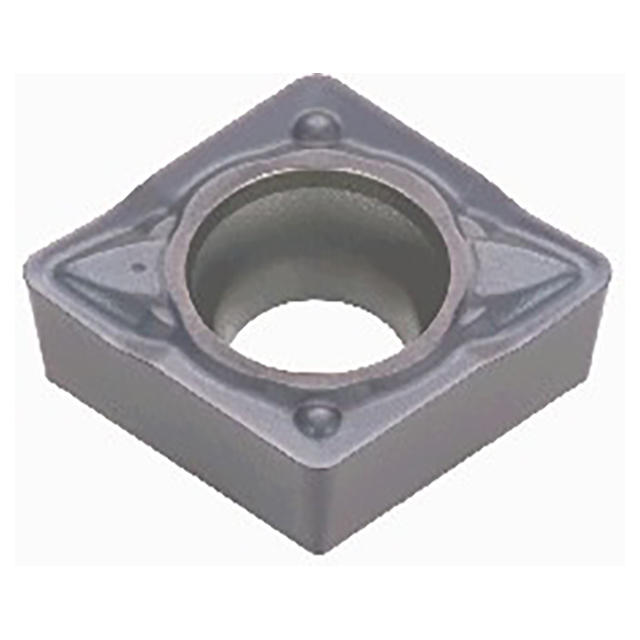

Tungaloy 6998293 | CCMT 21.51 PSS GT9530 1/4" Circle Diameter x 0.094" Thickness x 0.016" Radius TiCNO Coated Cermet Indexable Turning Insert

$10.45 $7.32
(You save $3.13)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
1/4"
Inscribed Circle (Decimal Inch):
0.2500"
Inscribed Circle (mm):
6.35mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23018571
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert, for finishing to medium cutting.


Product Specifications
# MFG6998293
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.256"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.11"
Inscribed Circle Diameter (Inch)1/4"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0118"
Minimum Turning Feed (Inch)0.0039"/rev
CoatingTiCNO
Cutting Edge MaterialCermet
GradeGT9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel
Chip Breaker TypePSS
Major Clearance Angle7 Degree
Body MaterialCarbide
