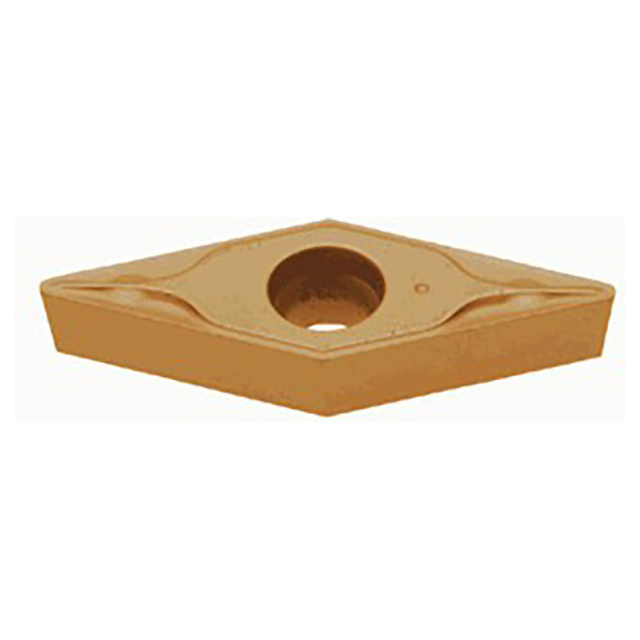

Positive 7 degree relief angle, M class, 35 degree rhombic insert, for finishing.
Product Specifications
| # MFG | 6998591 |
| Corner Radius (Inch) | 0.008" |
| Cutting Edge Length (Inch) | 0.327" |
| Maximum Depth of Cut (Inch) | 0.059" |
| Fixing Hole Diameter (Inch) | 0.091" |
| Inscribed Circle Diameter (Inch) | 0.187" |
| Insert Thickness (Inch) | 0.094" |
| Maximum Turning Feed (Inch) | 0.0098"/rev |
| Minimum Depth of Cut (Inch) | 0.0078" |
| Minimum Turning Feed (Inch) | 0.0031"/rev |
| Cutting Edge Material | Cermet |
| Grade | NS9530 |
| Tool Type | Turn Positive Inserts |
| Applicable Material | Steel, Stainless Steel, Cast Iron |
| Chip Breaker Type | PF |
| Major Clearance Angle | 7 Degree |
| Body Material | Carbide |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/16"
Inscribed Circle (Decimal Inch):
0.1870"
Inscribed Circle (mm):
4.75mm
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Decimal Inch):
0.0080"
interval quantity:
10
