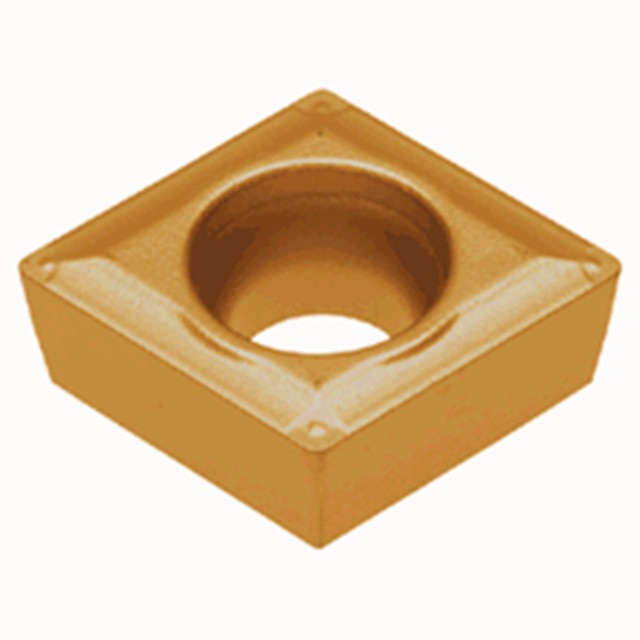

Tungaloy 6998617 | CCMT 32.52-23 NS9530 3/8" Circle Diameter x 0.156" Thickness x 0.031" Radius Cermet Indexable Turning Insert

$11.20 $7.84
(You save $3.36)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
3/8"
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.52mm
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1560"
Thickness (mm):
3.96mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0310"
Corner Radius (mm):
0.79mm
SKU:
23018685
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, 80 degree rhombic insert, for finishing to medium cutting.


Product Specifications
Manufacturer Part Number6998617
Corner Radius (Inch)0.031"
Cutting Edge Length (Inch)0.382"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.173"
Inscribed Circle Diameter (Inch)3/8"
Insert Thickness (Inch)0.156"
Maximum Turning Feed (Inch)0.0079"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0031"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type23
Major Clearance Angle7 Degree
Body MaterialCarbide
