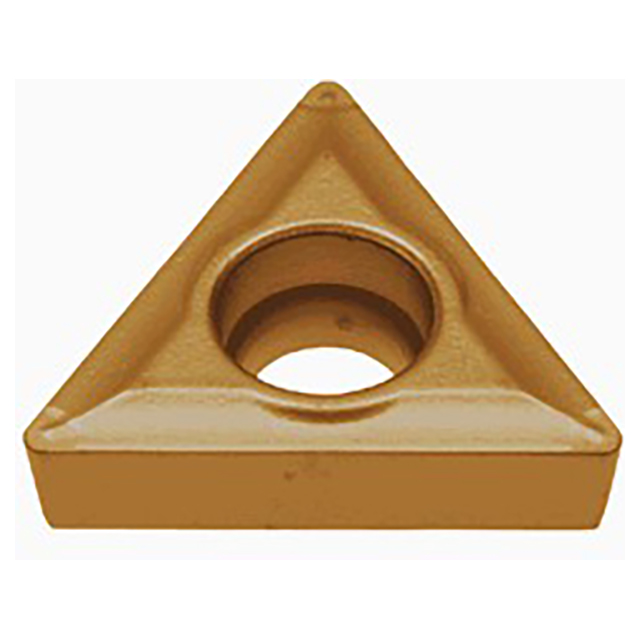

Tungaloy 6998624 | TCMT 731-23 NS9530 0.219" Circle Diameter x 0.094" Thickness x 0.016" Radius Cermet Indexable Turning Insert

$8.55 $5.99
(You save $2.56)
Brand:
Tungaloy
Material:
Carbide
Inscribed Circle (Inch):
7/32"
Inscribed Circle (Decimal Inch):
0.2190"
Inscribed Circle (mm):
5.56mm
Thickness (Inch):
3/32"
Thickness (Decimal Inch):
0.0940"
Thickness (mm):
2.39mm
Corner Radius (Inch):
1/64"
Corner Radius (Decimal Inch):
0.0160"
Corner Radius (mm):
0.41mm
interval quantity:
10
SKU:
23024306
UPC:
Weight:
1.23 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Positive 7 degree relief angle, M class, triangular insert, for finishing to medium cutting.


Product Specifications
# MFG6998624
Corner Radius (Inch)0.016"
Cutting Edge Length (Inch)0.378"
Maximum Depth of Cut (Inch)0.0787"
Fixing Hole Diameter (Inch)0.098"
Inscribed Circle Diameter (Inch)0.219"
Insert Thickness (Inch)0.094"
Maximum Turning Feed (Inch)0.0118"/rev
Minimum Depth of Cut (Inch)0.0196"
Minimum Turning Feed (Inch)0.0039"/rev
Cutting Edge MaterialCermet
GradeNS9530
Tool TypeTurn Positive Inserts
Applicable MaterialSteel, Stainless Steel, Cast Iron
Chip Breaker Type23
Major Clearance Angle7 Degree
Body MaterialCarbide
