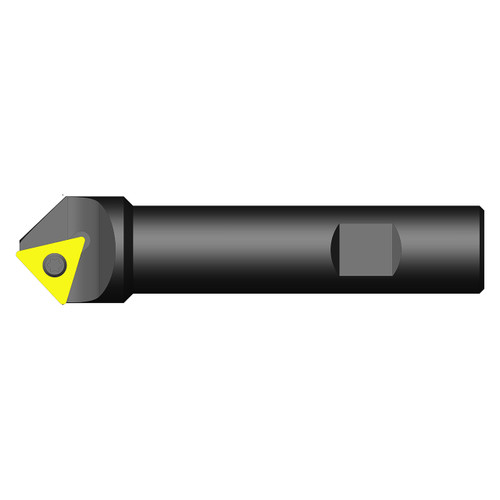

Ultra-Dex 909-000-527 | E41C-D.188-1-.750-3 x 0.914" Diameter x 4.000" Functional Length 41 Degree Entering Angle Indexable Chamfer Mill

$147.96 $140.56
(You save $7.40)
Brand:
Ultra-Dex
Minimum Cutting Diameter (Inch):
3/16"
Minimum Cutting Diameter (Decimal Inch):
0.1880"
Minimum Cutting Diameter (mm):
4.78mm
Maximum Cutting Diameter (Inch):
29/32"
Maximum Cutting Diameter (Decimal Inch):
0.9140"
Maximum Cutting Diameter (mm):
23.22mm
interval quantity:
1
SKU:
25336440
UPC:
Weight:
0.60 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Ultra-Dex 909-000-527 | E41C-D.188-1-.750-3 x 0.914" Diameter x 4.000" Functional Length 41 Degree Entering Angle Indexable Chamfer Mill

Product Specifications
Manufacturer Part Number909-000-527
Maximum Axial Depth of Cut (Decimal Inch)0.418"
Minimum Cutting Diameter (Decimal Inch)0.188"
Maximum Cutting Diameter (Decimal Inch)0.914"
Machine Side Connection Diameter (Decimal Inch)0.750"
Functional Length (Decimal Inch)4.000"
Entering Angle (Degree)41 Degree
InsertTCMT 32.5
Insert ScrewMTS-35
Product TypeIndexable Chamfer Mill
