Product Specifications
| Manufacturer Part Number | 966-000-300 |
| Body Diameter (Decimal Inch) | 4.880" |
| Body Diameter 1 (Decimal Inch) | 2.750" |
| Connection Retention Knob Thread Size | 1-8" |
| Work Side Connection Diameter (Decimal Inch) | 2.500" |
| Body Length (Decimal Inch) | 0.940" |
| Body Length 1 (Decimal Inch) | 1.125" |
| Body Length 2 (Decimal Inch) | 1.750" |
| Functional Length (Decimal Inch) | 2.500" |
| Counterbore Shoulder Length (Decimal Inch) | 0.940" |
| Connection Type | CAT50 |
| Drive Key | UDK 100 |
| Lock Screw | U5007 |

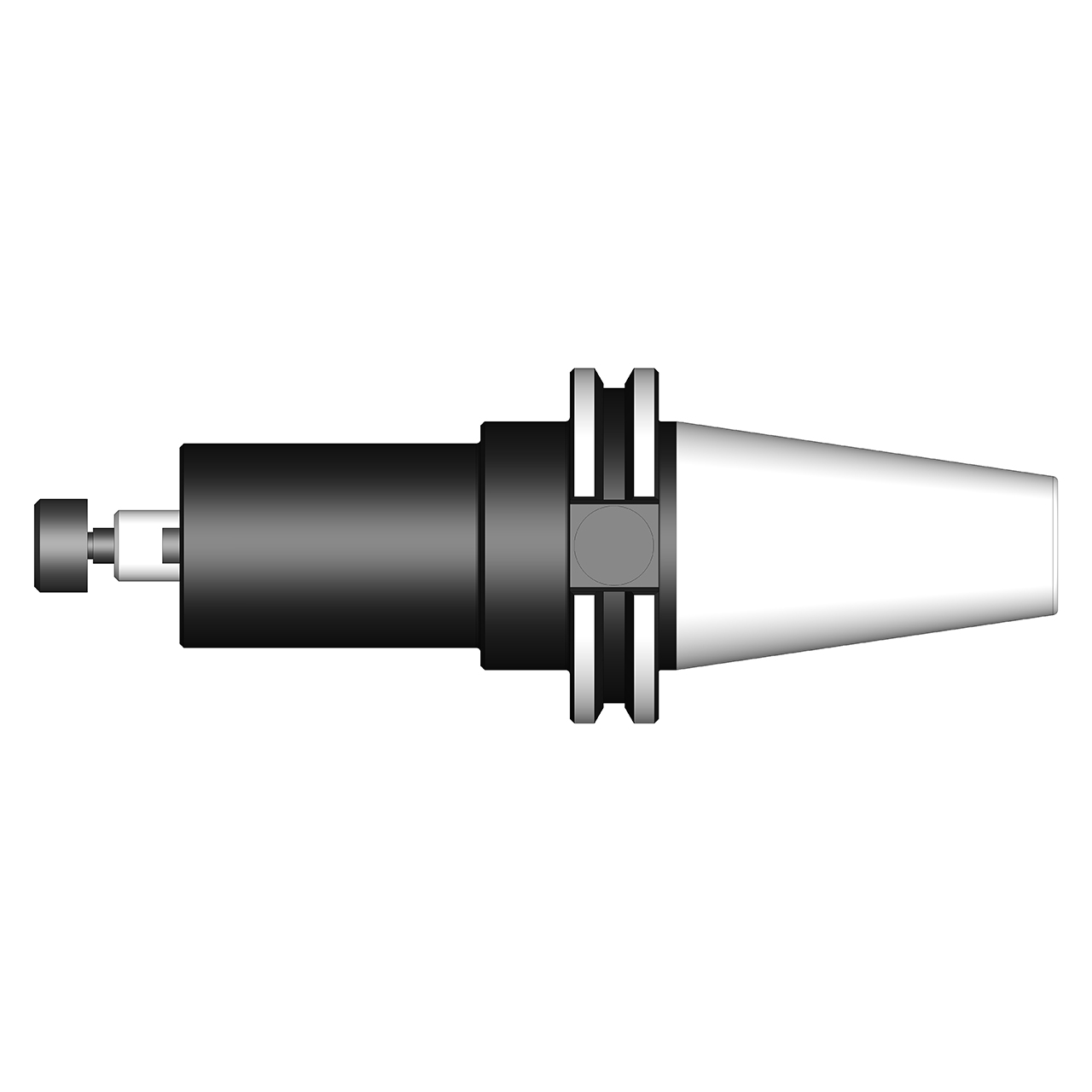

| Product Type | Shell Mill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Ultra-Dex
Through Coolant:
Yes
interval quantity:
1
