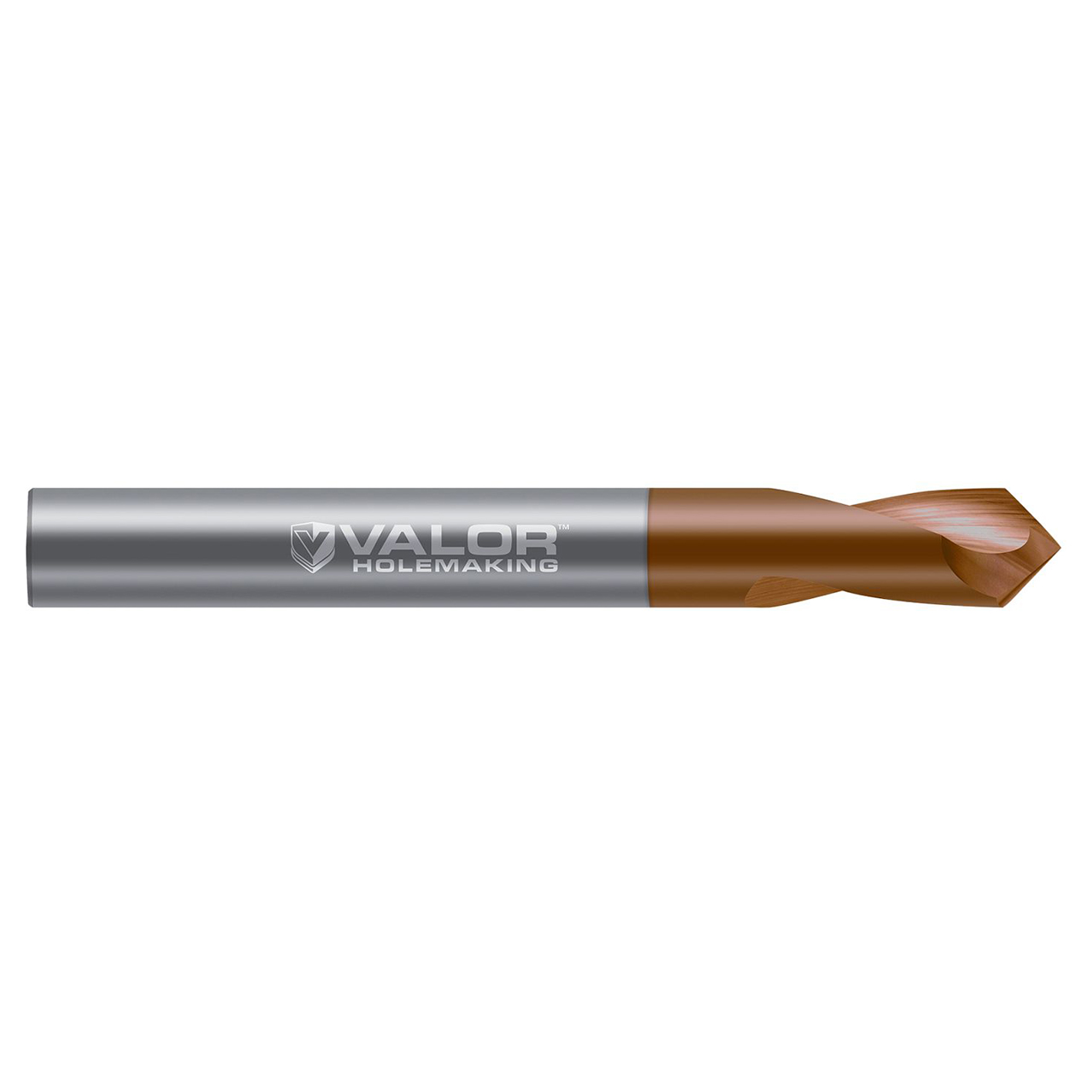

Valor holemaking's offering of high performance spotting drills delivers pinpoint accuracy by featuring a highly engineered point design to provide better positioning and stability for high performance drilling applications.
Features:
- Thinned web to reduce walking
- Uncoated option well-suited for spot drilling aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V126235 |
| Drill Diameter (Inch) | 0.2362" |
| Drill Diameter (mm) | 6.000mm |
| Flute Length (Inch) | 0.787" |
| Flute Length (mm) | 20.00mm |
| End Length (mm) | 1.24mm |
| Shank Diameter (mm) | 6.000mm |
| Overall Length (mm) | 63.000mm |
| Included Angle | 135 Degree |
| Point Angle | 135 Degree |
| Angle Per Side | 67.5 Degree |
| Metric | Y |
| Number of Flutes | 2 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Overall Length (Decimal Inch):
2.4803"
Overall Length (mm):
63.00mm
