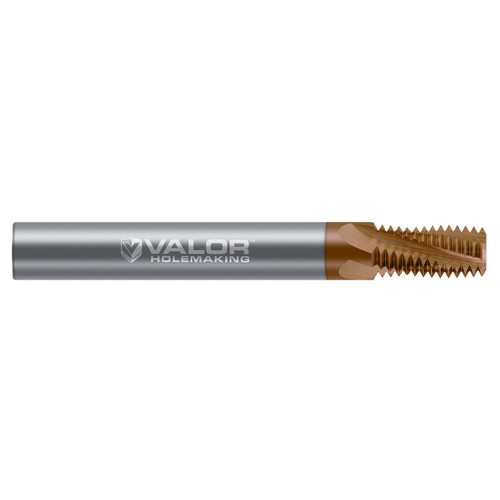

Featuring long flute geometry, this fully stocked offering of Valor holemaking multi-form thread mills is specifically designed for deep threaded applications and engineered to mill right hand and left hand threads.
Features:
- Superb strength in UN applications
- Increased cutter diameter allows for maximum strength while achieving 60% threads
- Designed to mill right hand and left hand internal 60 Degree UN threads
- Able to cut larger threads of the same pitch
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications

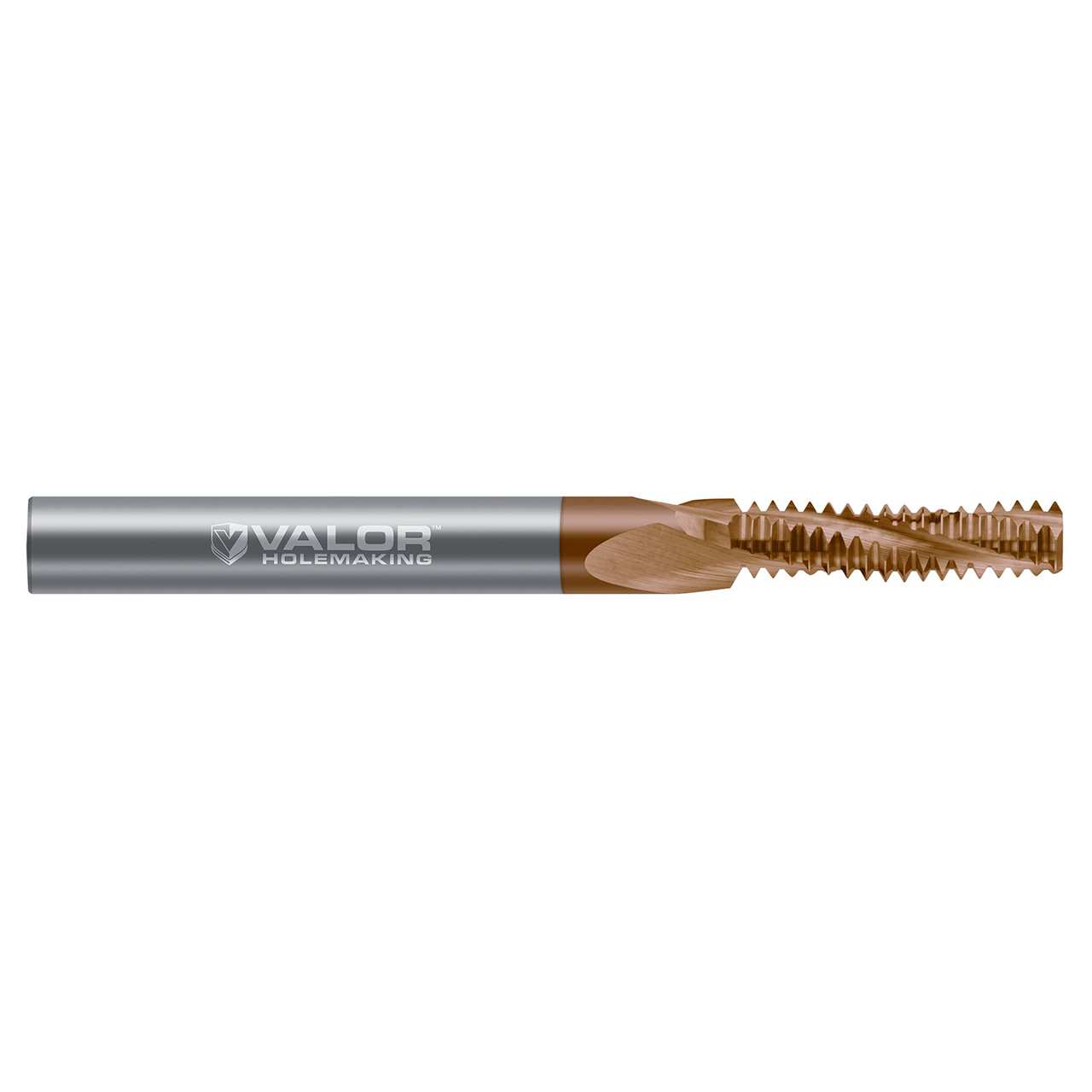

| Manufacturer Part Number | V184026 |
| Cutter Diameter (Inch) | 0.2450" |
| Length of Cut (Inch) | 0.9580" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 3.0000" (3) |
| Size | 5/16-24 |
| Included Angle | 60 Degree |
| Metric | N |
| Number of Flutes | 3 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2450"
Cutter Diameter (mm):
6.22mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Number of Flutes:
3
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
0.9580"
Length of Cut (mm):
24.33mm
Finish/Coating:
Uncoated
