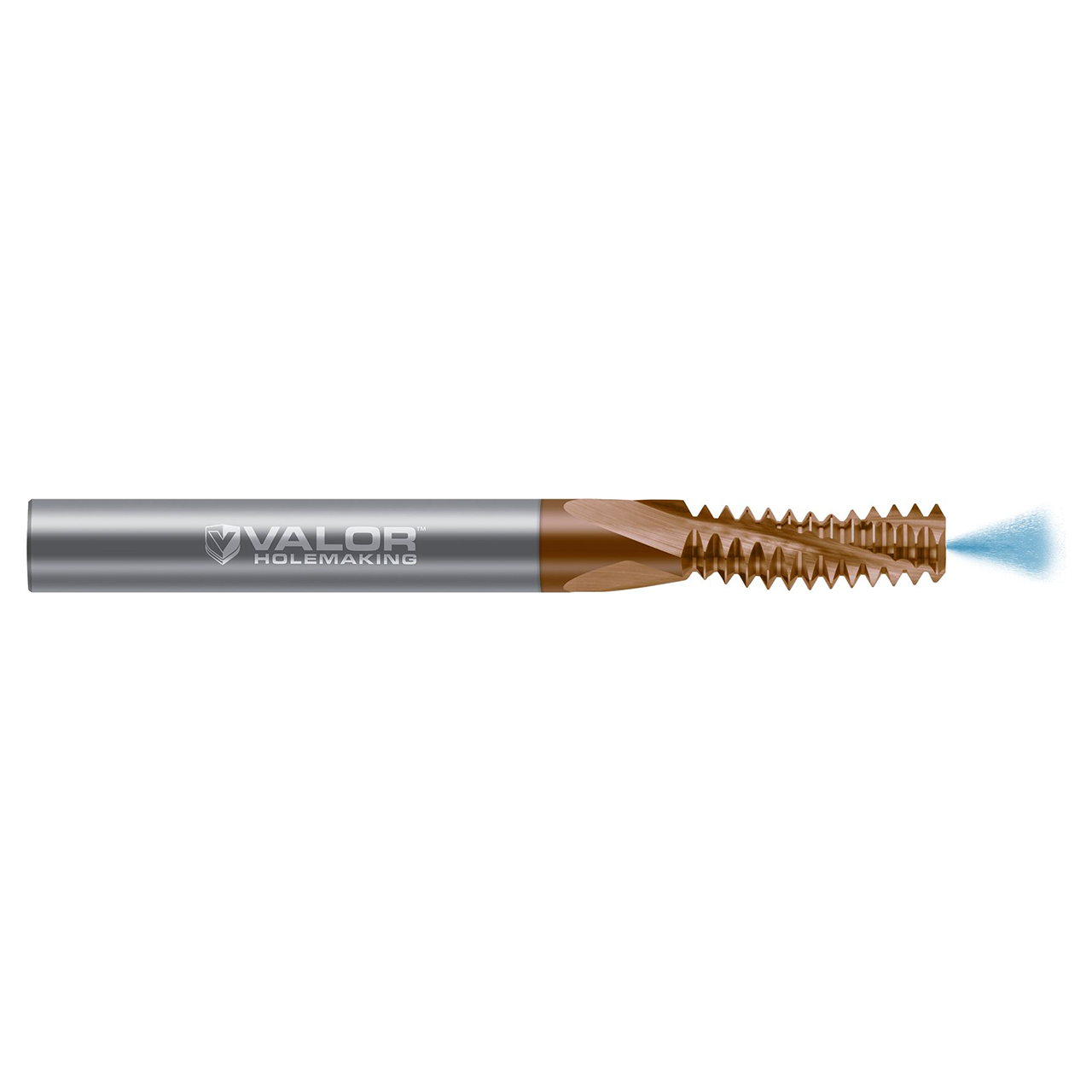

Valor V396731 | 0.1450" Cutter Diameter x 0.1875" (3/16) Shank x 0.3120" (5/16) LOC 3 Flute Uncoated Helical Flute Thread Mill

$152.80
Brand:
Valor
Cutter Diameter (Inch):
1/7"
Cutter Diameter (Decimal Inch):
0.1450"
Cutter Diameter (mm):
3.68mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3120"
Length of Cut (mm):
7.92mm
Finish/Coating:
Uncoated
Through Coolant:
Yes
interval quantity:
1
SKU:
10269549
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

This fully stocked offering of Valor holemaking coolant-through, multi-form thread mills is optimized to create UN threads and engineered for superior results in blind hole threading applications.

Features:

  • Enhanced coolant-through design for superior chip ejection
  • Coolant-through design allows for maximum chip ejection in blind holes
  • Designed to mill right hand and left hand 60 Degree UN threads
  • Able to cut larger threads of the same pitch
  • Offered in 3 and 4 helical flutes
  • Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV396731
Cutter Diameter (Inch)0.1450"
Length of Cut (Inch)0.3120" (5/16)
Shank Diameter (Inch)0.1875" (3/16)
Overall Length (Inch)2.3750" (2-3/8)
Size10-24
Included Angle60 Degree
MetricN
Coolant ThroughY
Number of Flutes3
CoatingUncoated
