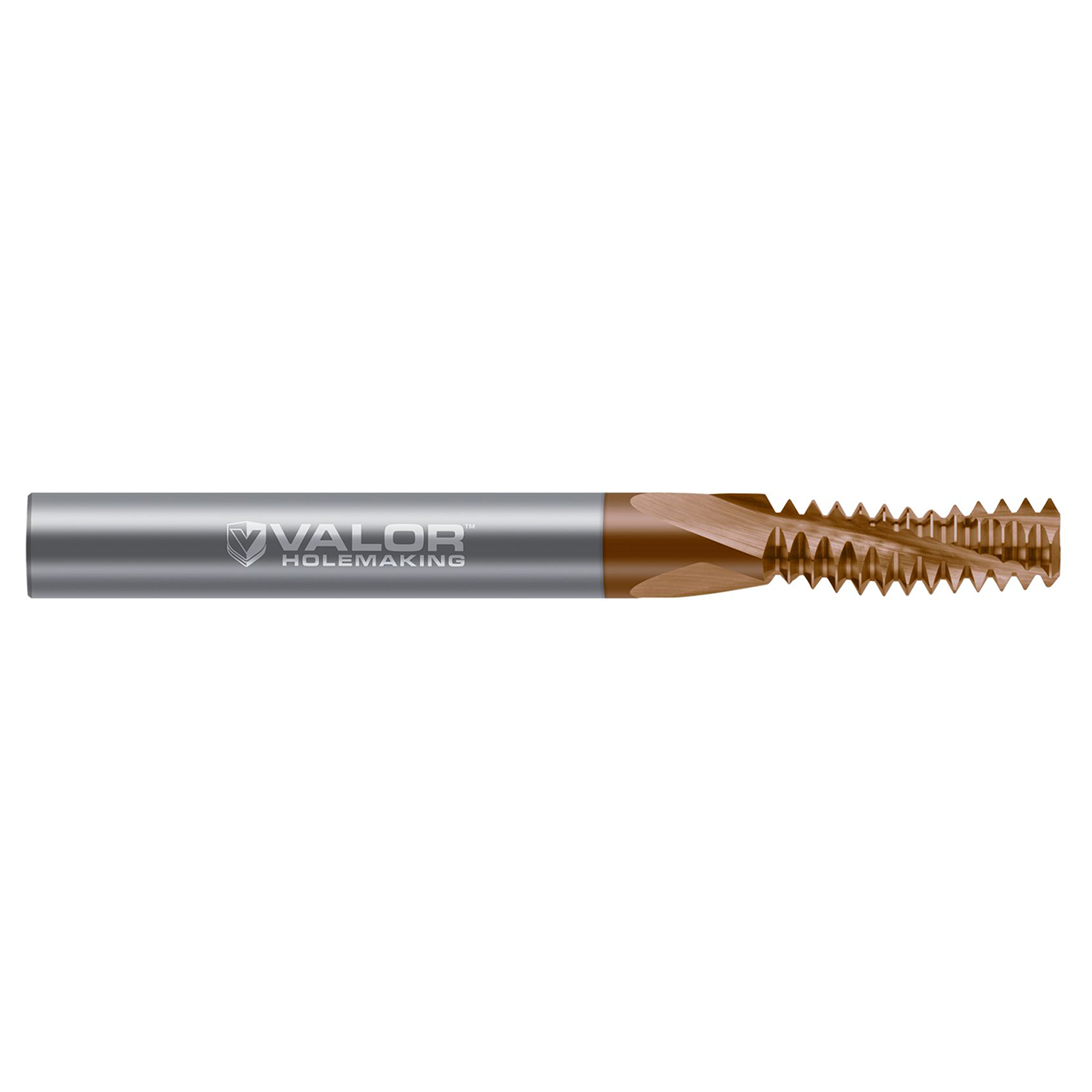

Valor V520089 | 0.1200" Cutter Diameter x 0.1250" (1/8) Shank x 0.3120" (5/16) LOC 3 Flute Uncoated Helical Flute Thread Mill

$136.80
Brand:
Valor
Cutter Diameter (Inch):
1/8"
Cutter Diameter (Decimal Inch):
0.1200"
Cutter Diameter (mm):
3.05mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3120"
Length of Cut (mm):
7.92mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
10271296
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Valor holemaking's premium offering of thread mills - multi-form - metric threads is designed to mill right hand and left hand 60 Degree UN, metric threads, delivering impressive versatility to your application.

Features:

  • Efficiently machines both internal & external metric threads
  • Specifically engineered to cut internal and external 60 Degree metric threads
  • Designed to mill right hand and left hand metric threads for added versatility
  • Able to cut larger threads of the same pitch
  • Offered in 3 and 4 helical flutes
  • Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV520089
Cutter Diameter (Inch)0.1200"
Length of Cut (Inch)0.3120" (5/16)
Shank Diameter (Inch)0.1250" (1/8)
Overall Length (Inch)2.0000" (2)
SizeM5-0.80
Included Angle60 Degree
MetricN
Number of Flutes3
CoatingUncoated
