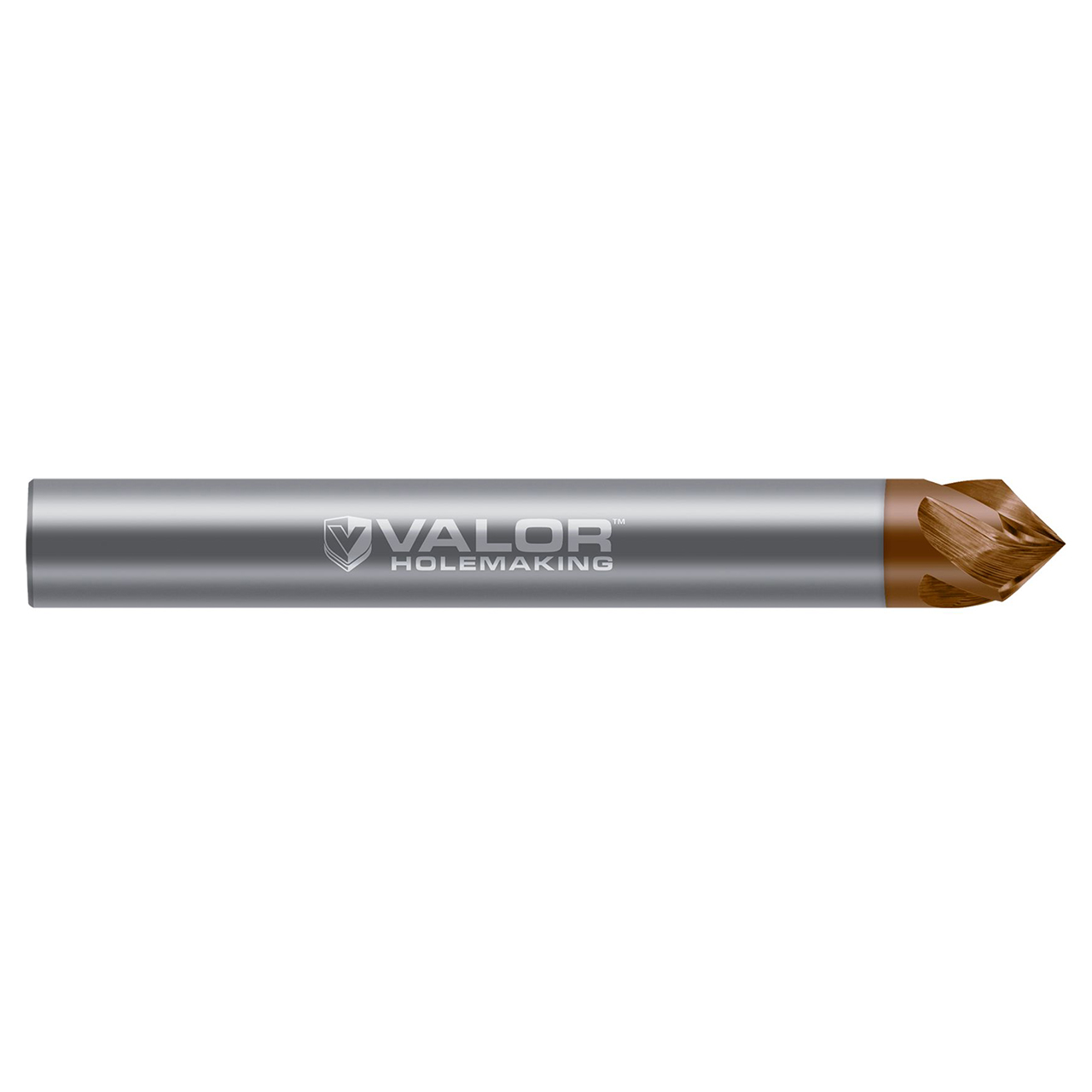

Engineered with a specialized helical flute design for superior performance, this offering of Chamfer Mills features High Performance double ended tooling that is offered in Type 1 Pointed and Type II Flat End (non-cutting) styles.
Features:
- Outstanding in High Performance Countersinking Applications
- Optimized for countersinking and chamfering operations while providing excellent performance in deburring applications
- Free cutting action design provides excellent surface finish and chip evacuation
- Offered in 60 Degree, 90 Degree, and 120 Degree included angles
- 2, 3, 4, and 5 flute options
- h6 shank tolerance for high precision tool holders
- Uncoated option well-suited for Aluminum Alloys and other Non-Ferrous Alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including Alloy steels, Stainless steels, Nickel Alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V546651-X |
| Length of Cut (Inch) | 0.0910" |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Tip (Inch) | 0.0700" |
| Included Angle | 120 Degree |
| Angle Per Side | 60 Degree |
| Type | II |
| Metric | N |
| Number of Flutes | 3 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Finish/Coating:
Val-Max X
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
3
