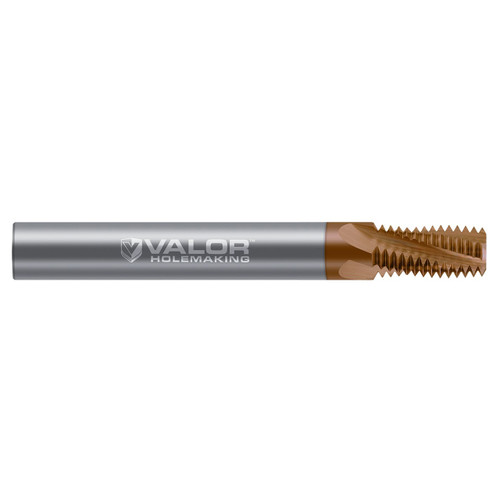

Valor V614054-X | 0.2450" Cutter Diameter x 0.2500" (1/4) Shank x 0.4370" (7/16) LOC 3 Flute Val-Max X Coated Helical Flute Thread Mill

$179.90
Brand:
Valor
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2450"
Cutter Diameter (mm):
6.22mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
7/16"
Length of Cut (Decimal Inch):
0.4370"
Length of Cut (mm):
11.10mm
Finish/Coating:
Val-Max X
interval quantity:
1
SKU:
10269292
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Engineered to cut internal and external 60 Degree National Pipe Taper (NPT) threads, this Valor holemaking multi-form thread mill offering is designed to mill right hand and left hand threads for added versatility.

Features:

  • Optimized specifically for internal & external 60 Degree NPT Threads
  • Offered in 3 and 4 helical flutes
  • Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
  • Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
  • Solid carbide
  • Precision manufactured in the USA

Product Specifications
Manufacturer Part NumberV614054-X
Cutter Diameter (Inch)0.2450"
Length of Cut (Inch)0.4370" (7/16)
Shank Diameter (Inch)0.2500" (1/4)
Overall Length (Inch)2.5000" (2-1/2)
Size1/16, 1/8-27
Included Angle60 Degree
Angle Per Side1 Degree 47'
MetricN
Number of Flutes3
CoatingVal-Max X

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
