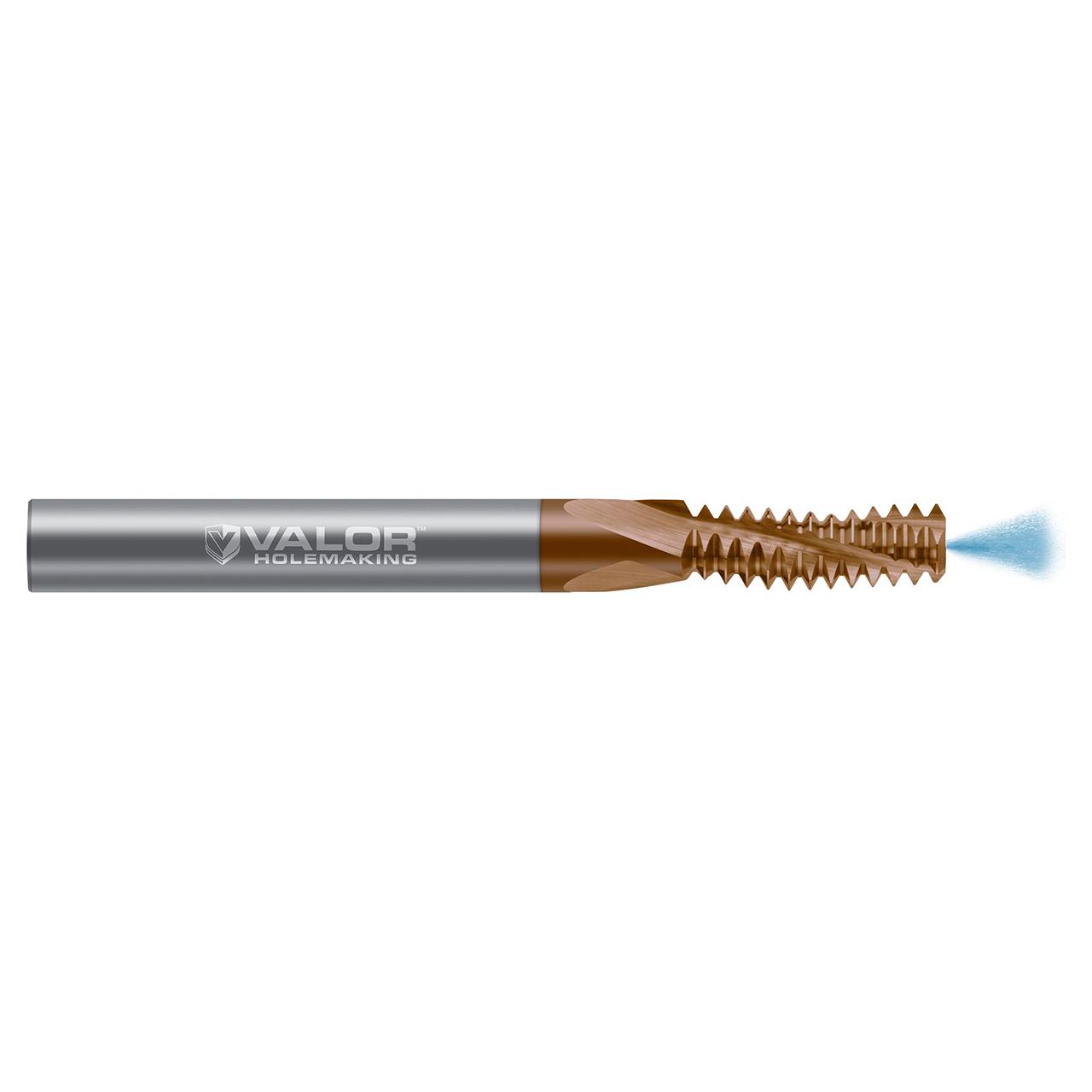

This fully stocked offering of Valor holemaking coolant-through, multi-form thread mills is optimized to create UN threads and engineered for superior results in blind hole threading applications.
Features:
- Enhanced coolant-through design for superior chip ejection
- Coolant-through design allows for maximum chip ejection in blind holes
- Designed to mill right hand and left hand 60 Degree UN threads
- Able to cut larger threads of the same pitch
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V656064-X |
| Cutter Diameter (Inch) | 0.1800" |
| Length of Cut (Inch) | 0.5000" (1/2) |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Overall Length (Inch) | 2.3750" (2-3/8) |
| Size | 1/4-20 |
| Included Angle | 60 Degree |
| Metric | N |
| Coolant Through | Y |
| Number of Flutes | 3 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
1/6"
Cutter Diameter (Decimal Inch):
0.1800"
Cutter Diameter (mm):
4.57mm
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Length of Cut (mm):
12.70mm
Finish/Coating:
Val-Max X
Through Coolant:
Yes
