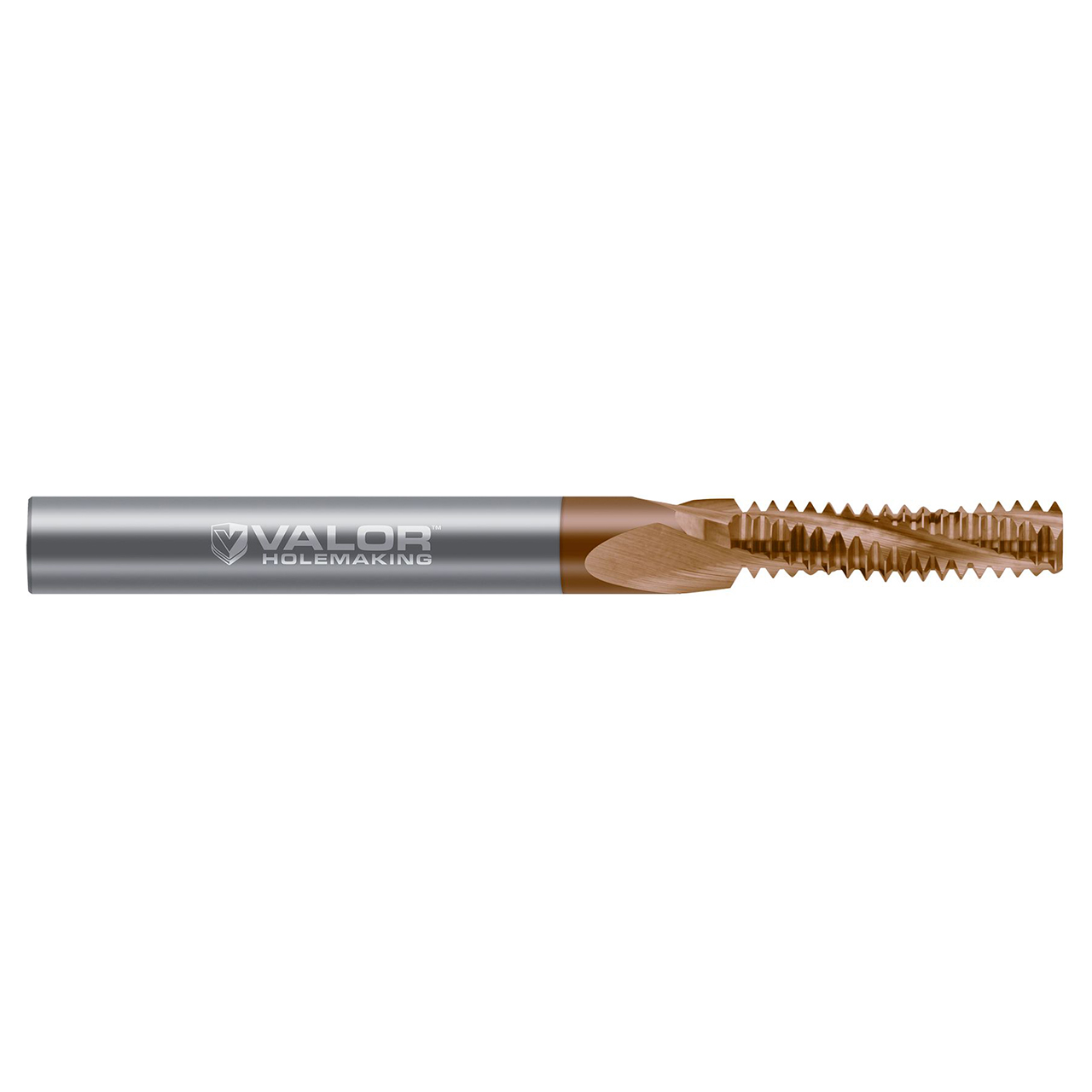

Specifically designed for deep threaded applications, this offering of top shelf thread mills features long flute geometry and increased cutter diameter sizes, allowing for maximum strength while achieving 60 percent threads.
Features:
- Excellent in deep threading metric applications
- Designed to mill right hand and left hand internal 60 Degree metric threads
- Able to cut larger threads of the same pitch
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V837004-X |
| Cutter Diameter (Inch) | 0.0900" |
| Length of Cut (Inch) | 0.2760" |
| Shank Diameter (Inch) | 0.1250" (1/8) |
| Overall Length (Inch) | 2.0000" (2) |
| Size | M3-0.50 |
| Included Angle | 60 Degree |
| Metric | N |
| Number of Flutes | 3 |
| Coating | Val-Max X |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Decimal Inch):
0.0900"
Cutter Diameter (mm):
2.29mm
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Shank Diameter (mm):
3.18mm
Number of Flutes:
3
Length of Cut (Inch):
2/7"
Length of Cut (Decimal Inch):
0.2760"
Length of Cut (mm):
7.01mm
Finish/Coating:
Val-Max X
