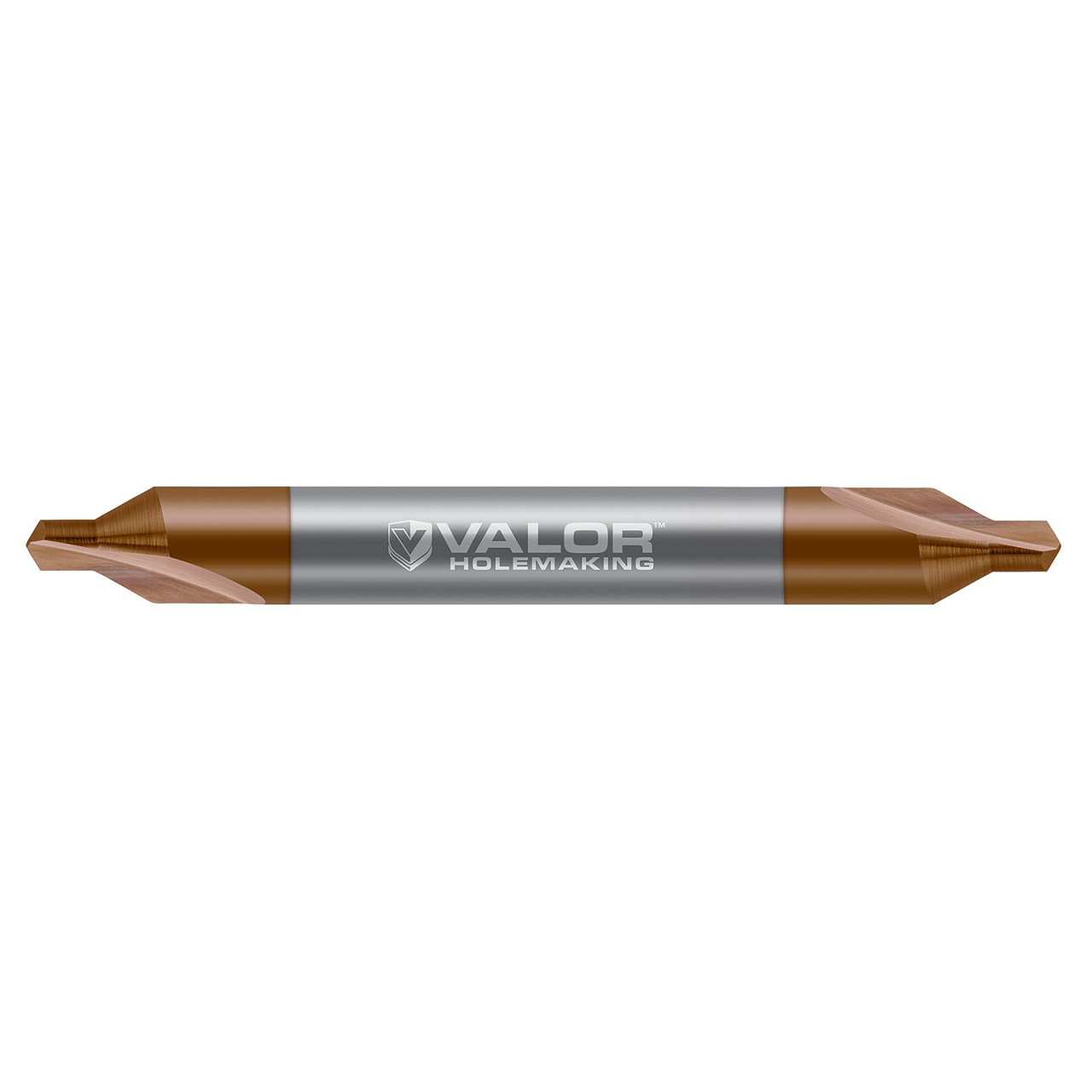

Valor holemaking's fully stocked offering of solid carbide combined drill & countersinks are double-ended for increased productvity and minimized downtime when predrilling 60 Degree, 82 Degree, or 90 Degree live center holes.
Features:
- Excellent choice for predrilling applications
- 2 flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V903674 |
| Drill Diameter (Inch) | 0.1250" (1/8) |
| Drill Length (Inch) | 0.1250" (1/8) |
| Length of Cut (Inch) | 0.3250" |
| Shank Diameter (Inch) | 0.3125" (5/16) |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Size | 4 |
| Included Angle | 60 Degree |
| Point Angle | 118 Degree |
| Angle Per Side | 30 Degree |
| Metric | N |
| Number of Flutes | 2 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Drill Point Diameter (Inch):
1/8"
Drill Point Diameter (Decimal Inch):
0.1250"
Drill Point Diameter (mm):
3.18mm
Included Angle:
60 Degree
Coating:
Uncoated
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
