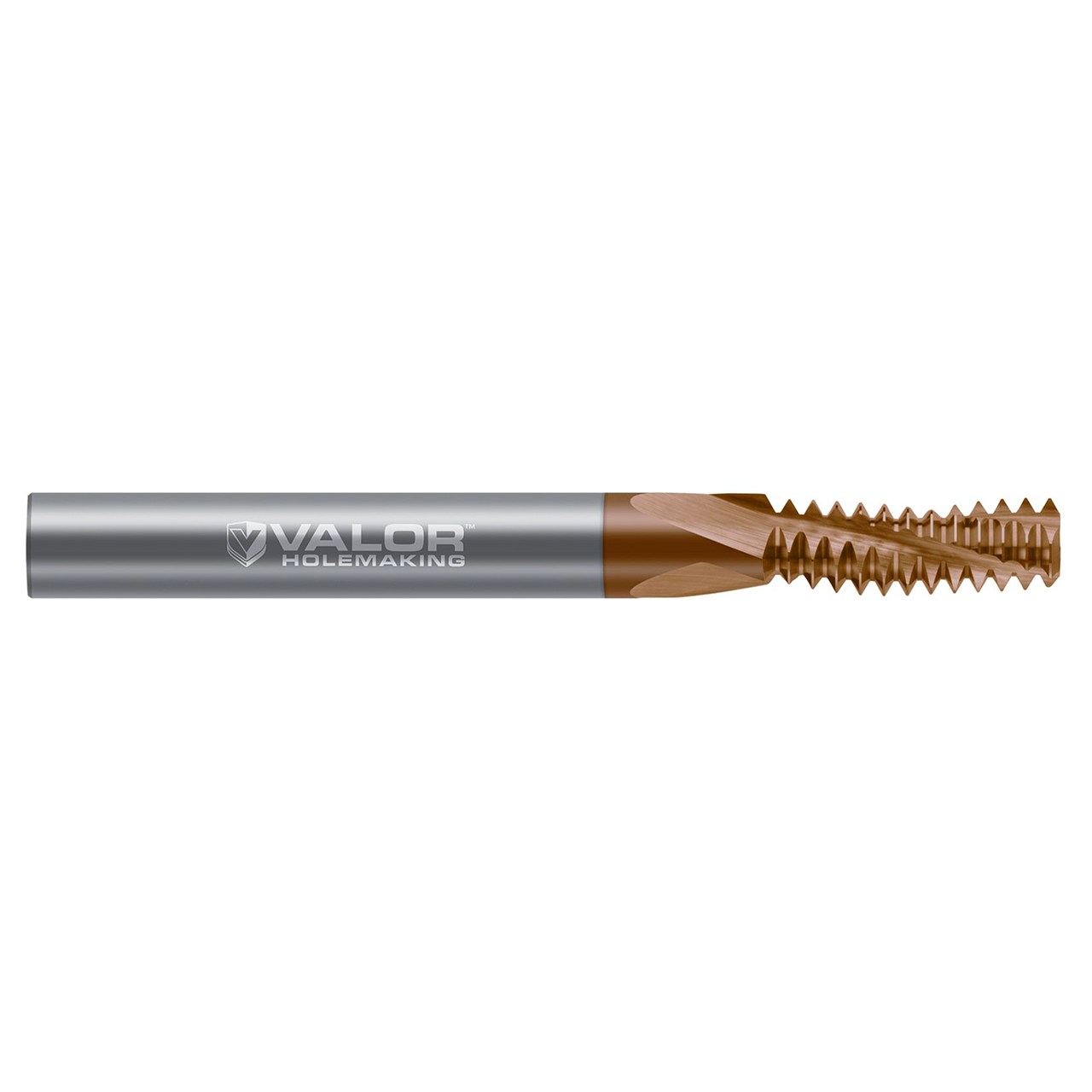

Valor holemaking's premium offering of thread mills - multi-form - metric threads is designed to mill right hand and left hand 60 Degree UN, metric threads, delivering impressive versatility to your application.
Features:
- Efficiently machines both internal & external metric threads
- Specifically engineered to cut internal and external 60 Degree metric threads
- Designed to mill right hand and left hand metric threads for added versatility
- Able to cut larger threads of the same pitch
- Offered in 3 and 4 helical flutes
- Uncoated option well-suited for aluminum alloys and other non-ferrous alloys
- Proprietary Val-Max X coating for improved tool life and heat resistance in ferrous materials, including alloy steels, stainless steels, nickel alloys, and other high hardness materials up to 65 Rc
- Solid carbide
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | V956048 |
| Cutter Diameter (Inch) | 0.3700" |
| Length of Cut (Inch) | 0.8750" (7/8) |
| Shank Diameter (Inch) | 0.3750" (3/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Size | M14-1.50 |
| Included Angle | 60 Degree |
| Metric | N |
| Number of Flutes | 4 |
| Coating | Uncoated |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Valor
Cutter Diameter (Inch):
3/8"
Cutter Diameter (Decimal Inch):
0.3700"
Cutter Diameter (mm):
9.4mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
7/8"
Length of Cut (Decimal Inch):
0.8750"
Length of Cut (mm):
22.23mm
Finish/Coating:
Uncoated
