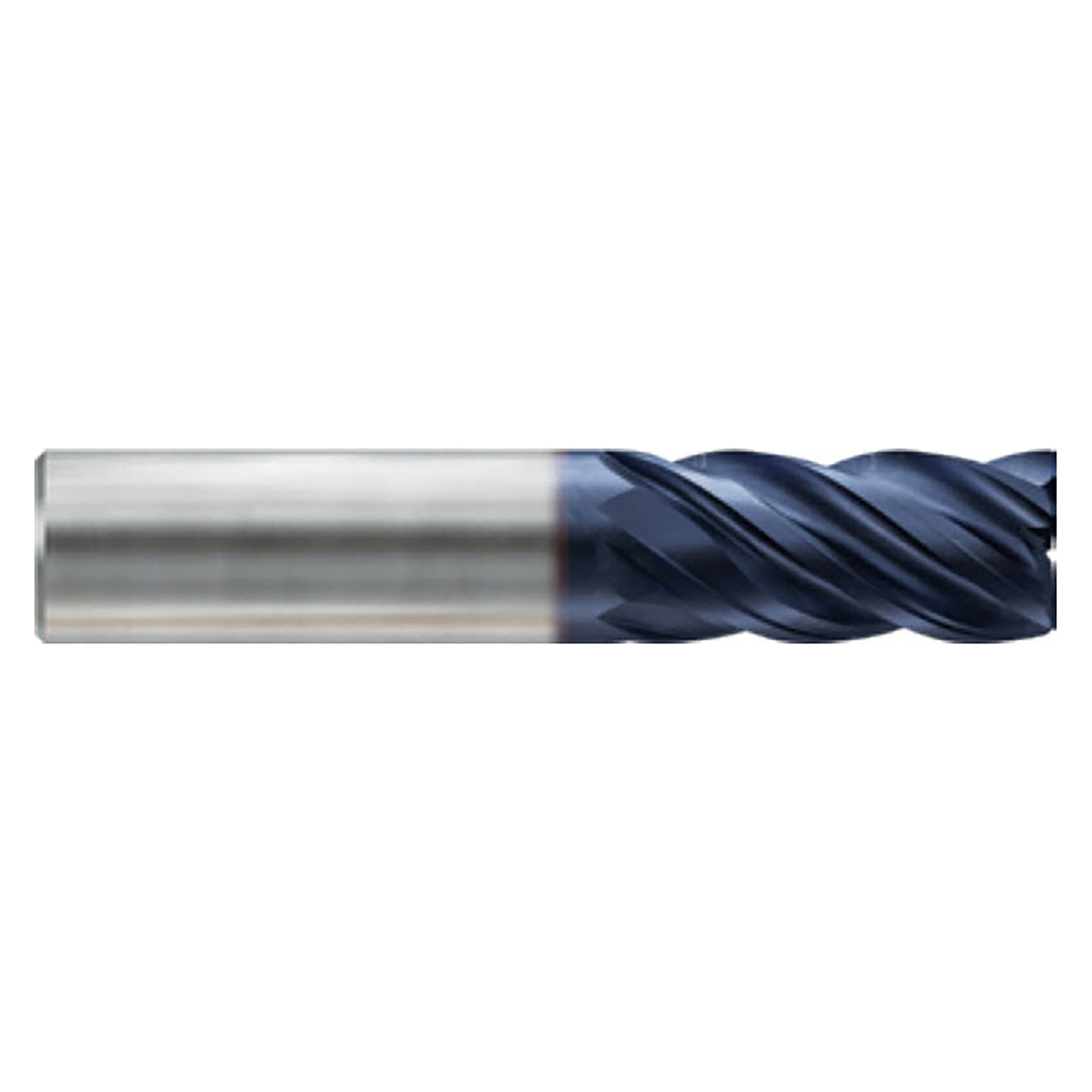

Product Specifications
| ETP Number | EMI43902 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Corner Radius (Decimal Inch) | 0.0600" |
| Corner Radius (Inch) | 3/50" |
| Corner Radius (mm) | 1.52mm |
| Number of Flutes | 5 |
| Shank Style | Plain |
| Helix Angle | 38 |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Application | M,S |
| Cutting Direction | Right |
| Product Type | Corner Radius End Mill |
