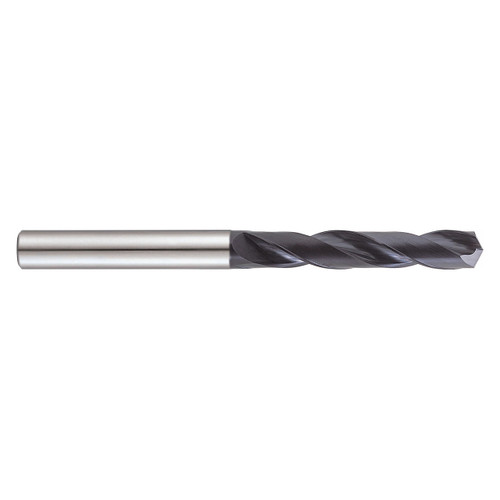

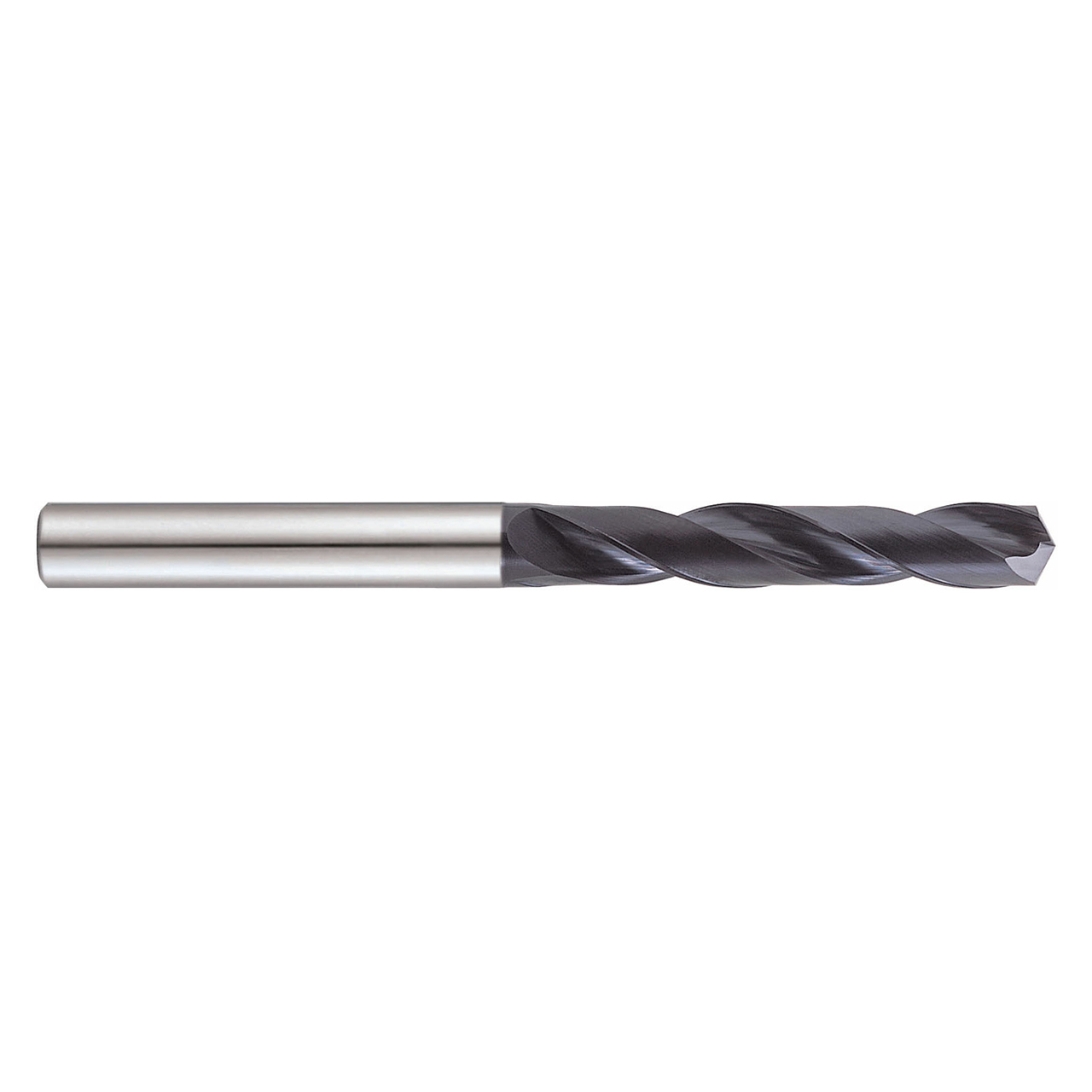

YG1 0211ATF | 0.3300" Diameter x 0.3281" Shank x 3.7500" OAL 2 Flute TiAlN Coated Carbide Dream Drill Bit

$102.11 $68.92
(You save $33.19)
Brand:
YG1
Flute Length (Inch):
2-1/16"
Flute Length (Decimal Inch):
2.0625"
Flute Length (mm):
95.25mm
Overall Length (Inch):
3-3/4"
Overall Length (Decimal Inch):
3.7500"
Overall Length (mm):
95.25mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
interval quantity:
1
SKU:
10026804
UPC:
Weight:
0.15 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Diameter (Decimal Inch)0211ATF
Diameter (Decimal Inch)0.3300"
Diameter (Inch)21/64"
Diameter (mm)8.33mm
Shank Diameter (Decimal Inch)0.3281"
Shank Diameter (Inch)21/64"
Shank Diameter (mm)8.33mm
Flute Length (Decimal Inch)2.0625"
Flute Length (Inch)2-1/16"
Flute Length (mm)52.39mm
Overall Length (Decimal Inch)3.7500"
Overall Length (Inch)3-3/4"
Overall Length (mm)95.25mm
Point Length (Decimal Inch)0.0597"
Point Length (mm)1.52mm
Point Angle (Degree)140 Degree
Helix Angle (Degree)30 Degree
Length/Diameter3
Shank Toleranceh6
Coolant ThroughNo
Hole Tolerance+0-.00087
CoatingTiAlN
MaterialCarbide
Cutting DirectionRight
ApplicationP
TypeDream Drill Bit
