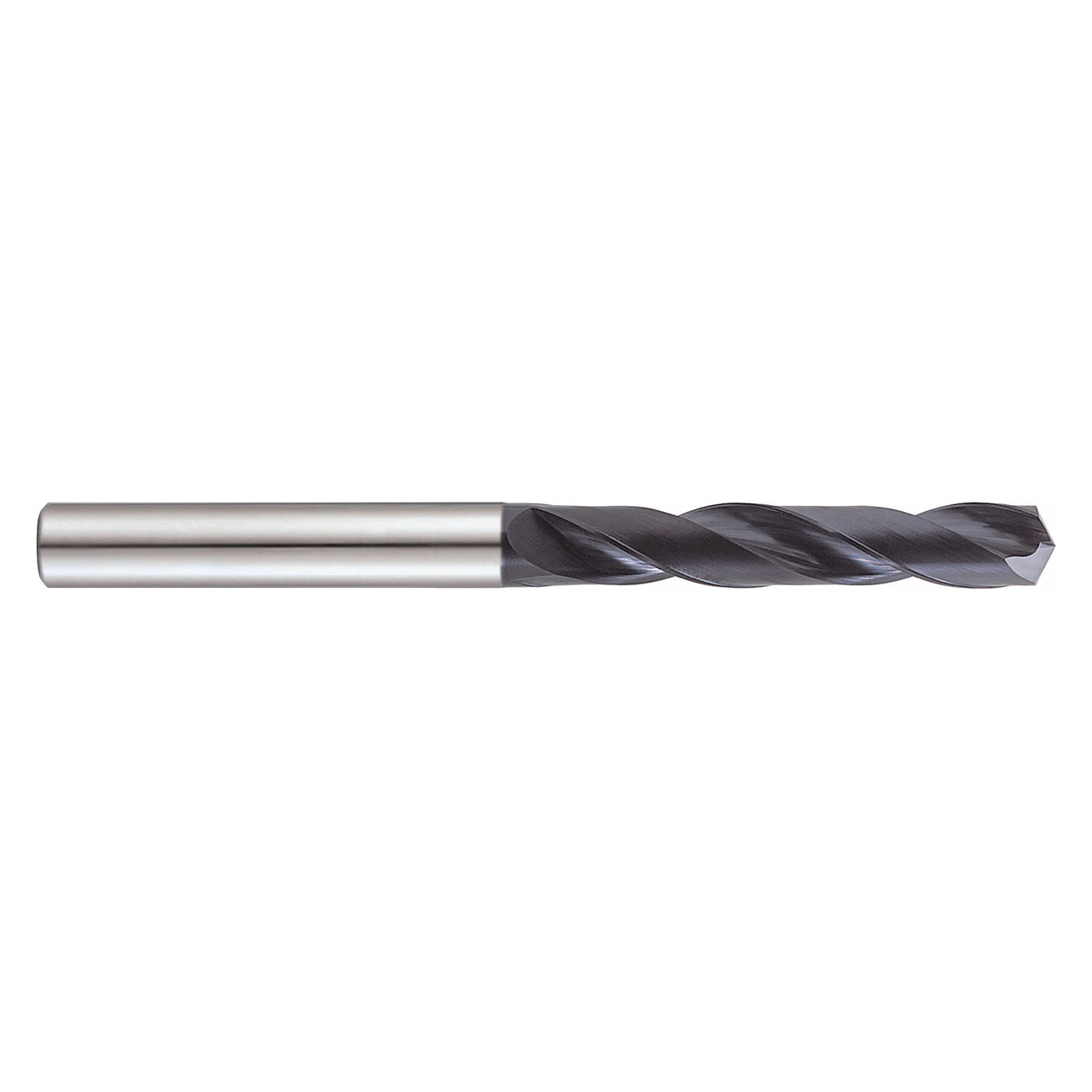

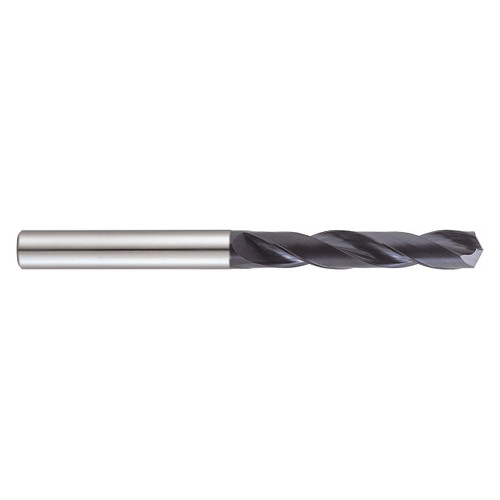

Product Specifications
| Diameter (Decimal Inch) | 0241ATF |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Flute Length (Decimal Inch) | 2.3750" |
| Flute Length (Inch) | 2-3/8" |
| Flute Length (mm) | 60.33mm |
| Overall Length (Decimal Inch) | 4.1250" |
| Overall Length (Inch) | 4-1/8" |
| Overall Length (mm) | 104.78mm |
| Point Length (Decimal Inch) | 0.0682" |
| Point Length (mm) | 1.73mm |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 3 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Hole Tolerance | +0-.00087 |
| Coating | TiAlN |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Type | Dream Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Drill Bit Size (Inch):
3/8"
Drill Bit Size (Decimal Inch):
0.3800"
Drill Bit Size (mm):
9.53mm
Flute Length (Inch):
2-3/8"
Flute Length (Decimal Inch):
2.3750"
Flute Length (mm):
104.78mm
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Overall Length (mm):
104.78mm
Material:
Carbide
Finish/Coating:
TiAlN
Cutting Direction:
Right
