Product Specifications
| EDP Number | 03047 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| LBS (Decimal Inch) | 1.5000" |
| LBS (Inch) | 1-1/2" |
| LBS (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 3.0625" |
| Overall Length (Inch) | 3-1/16" |
| Overall Length (mm) | 77.79mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | Bright |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1033 |
| End Type | Single End |
| Length Type | Extended |

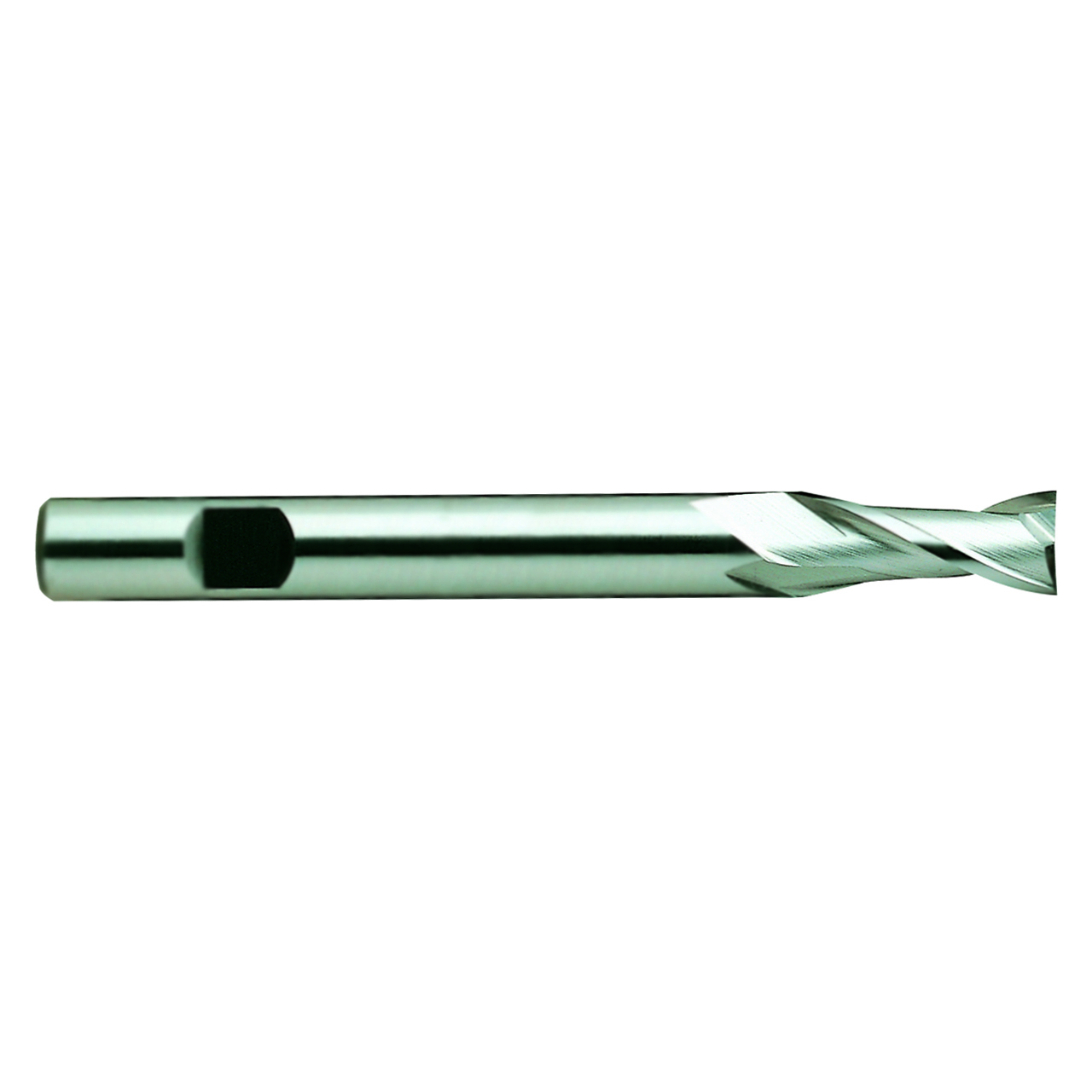

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/4"
Number of Flutes:
2
Length of Cut (Inch):
5/8"
Reach (Inch):
1-1/2"
Shank Diameter (Inch):
3/8"
Tool Material:
M42 8% Cobalt
Finish/Coating:
Bright Finish
Overall Length (Inch):
3-1/16"
Single or Double End:
Single
Center Cutting:
Yes
Cutting Direction:
Right Hand
Travers SKU1:
08-036-703
Ships:
From Partner Facility
