Product Specifications
| EDP Number | 03047HN |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| LBS (Decimal Inch) | 1.5000" |
| LBS (Inch) | 1-1/2" |
| LBS (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 3.0625" |
| Overall Length (Inch) | 3-1/16" |
| Overall Length (mm) | 77.79mm |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 30 Degree |
| Material | HSS |
| Coating | TiN |
| Shank Style | Flat |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1033 |
| End Type | Single End |
| Length Type | Extended |

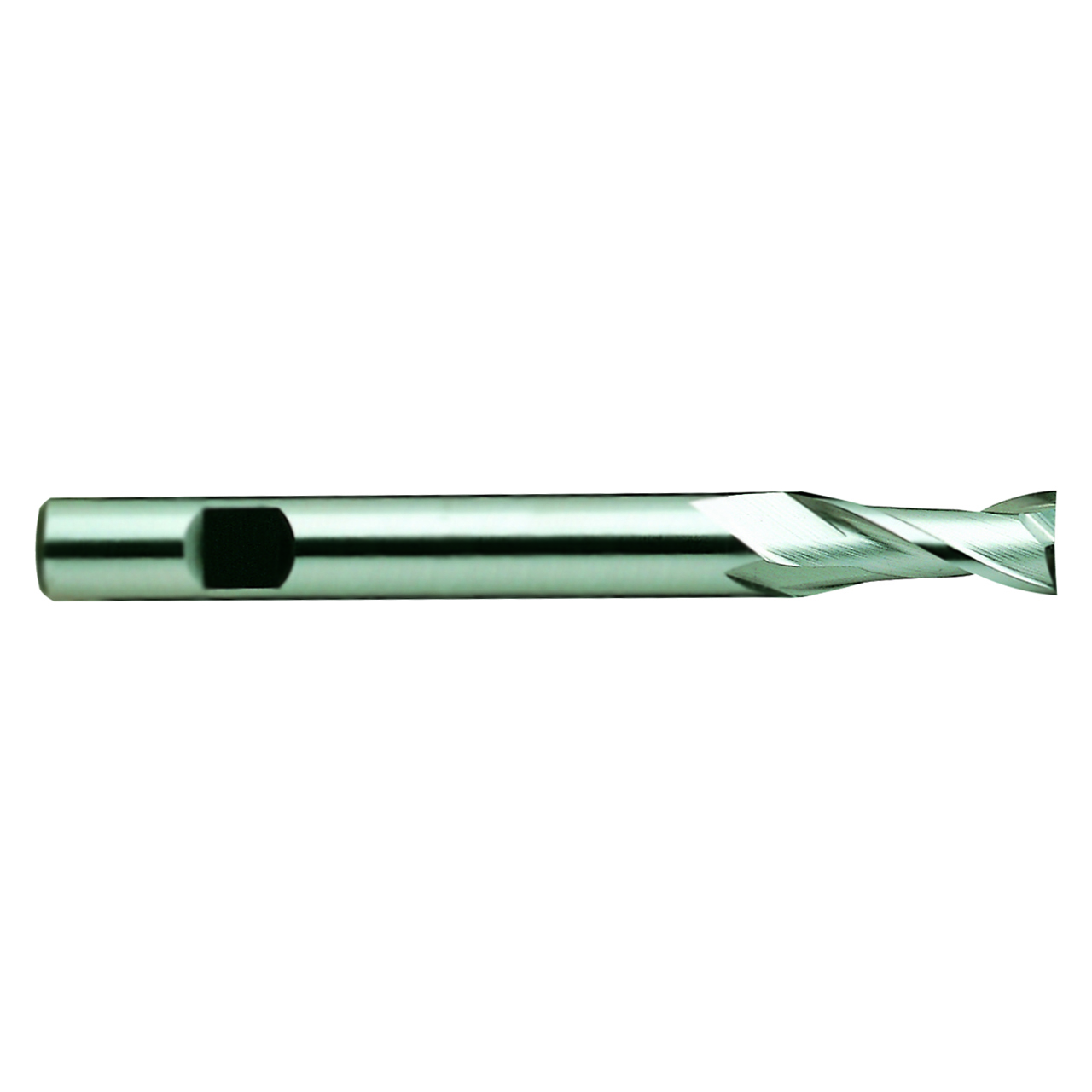

| Product Type | Square End Mill |
