Product Specifications
| EDP Number | 0401L |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Flute Length (Decimal Inch) | 1.5750" |
| Flute Length (Inch) | 1-23/40" |
| Flute Length (mm) | 40.01mm |
| Overall Length (Decimal Inch) | 4.5300" |
| Overall Length (Inch) | 4-44/83" |
| Overall Length (mm) | 115.06mm |
| Point Length (Decimal Inch) | 0.3125" |
| Point Length (mm) | 7.94mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 90 Degree |
| Series | D2N90 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Material | HSS 8% Cobalt |
| Hole Tolerance | h6 |
| Application | P |
| Cutting Direction | Right Hand |

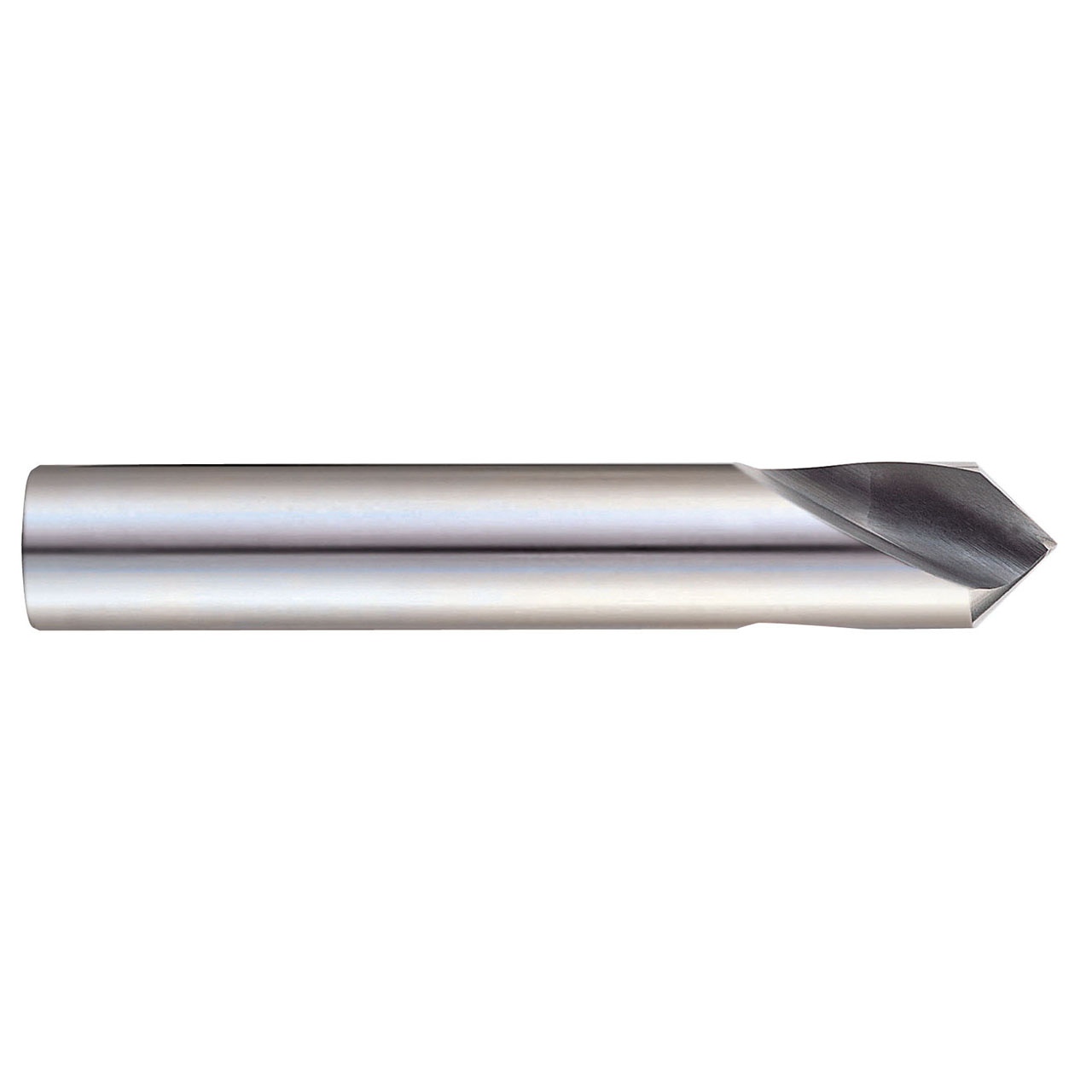

| Product Type | NC Spotting Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Body Diameter (Inch):
5/8"
Drill Point Angle:
90 Degree
Material:
Cobalt High Speed Steel
Overall Length (Decimal Inch):
4.5300"
Ships:
Same Business Day if Ordered by 12:30PM PT
IsDiscontinued:
