Product Specifications
| EDP Number | 04337CN |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Series | E2031 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Coating | TiN |
| Cut Type | End Cutting |
| Cutting Direction | Right |

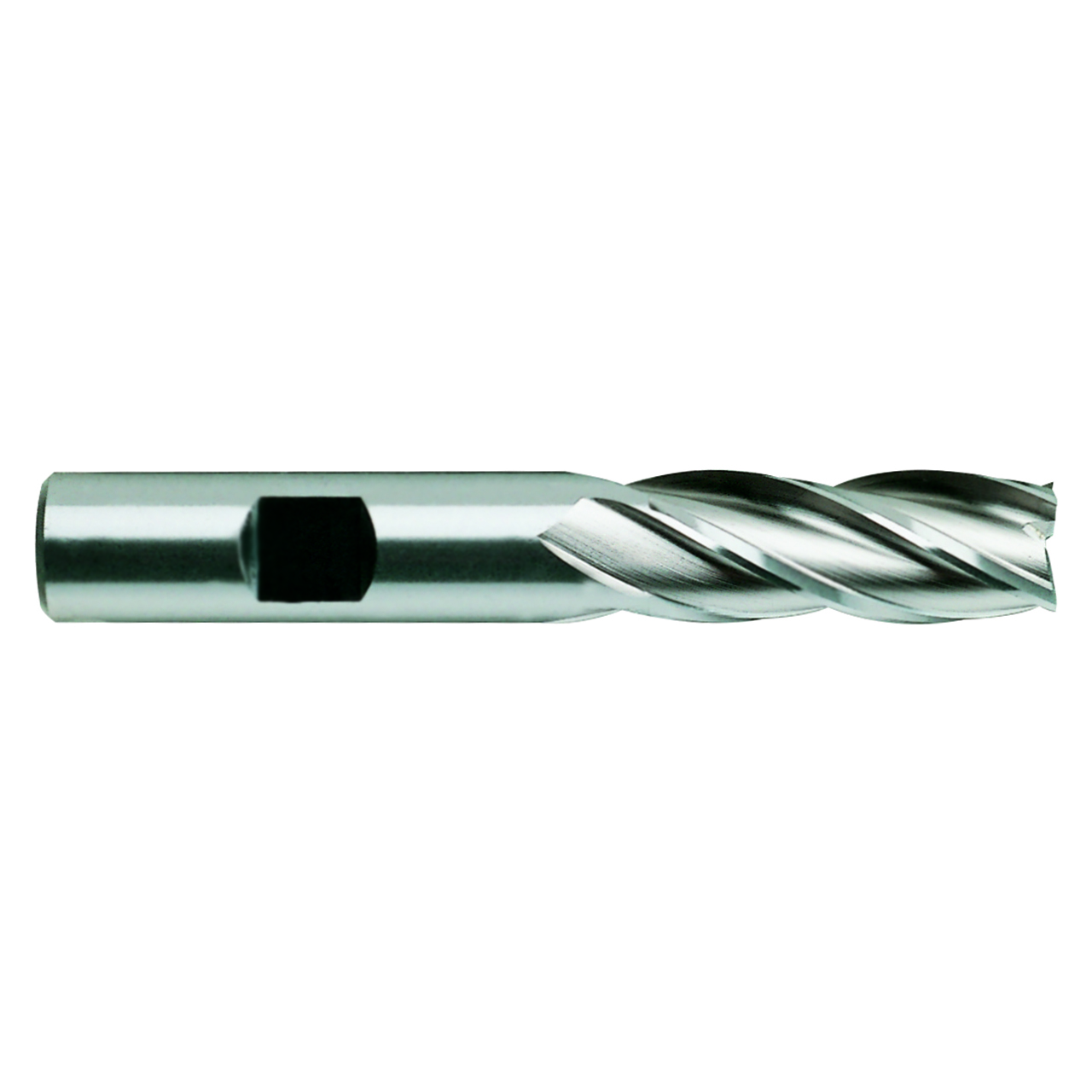

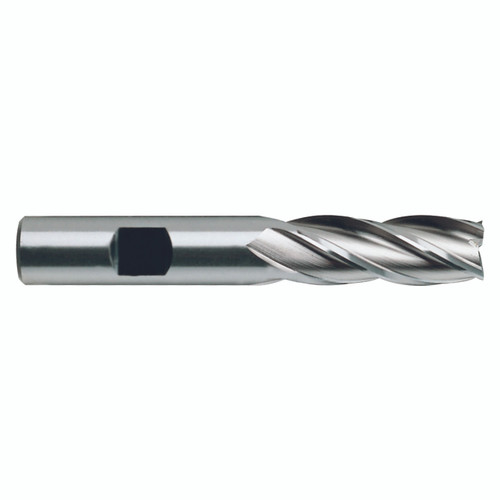

| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
